Product Description: Tech 80 Point-To-Point Boring Machines

STANDARD
EQUIPMENT:

Monoblock Steel Base, Ribbed For Strength And Normalized For Stability And Precision
Large THK Guideways In X, Y And Z Axis
AC Brushless Servo Drives In All Three Axes
Ball Screw Drive In All Three Axes
Worktable With Four Supports And Two Vacuum Cups Each For Part Hold Down
Pneumatically Controlled Side And Rear Reference Stops For Panel Placement
Supports Are Mechanically Locked In Place
Dual Zone Capacity For Fabrication Of Two Simultaneous Parts

Boring Unit:
Ten Independent Spindles For Vertical Boring On 32mm Centers Six In X-Axis, Four In Y-Axis
Two Independent Spindles For Horizontal Boring Along The X Axis
Two Independent Spindles For Horizontal Boring Along The Y Axis

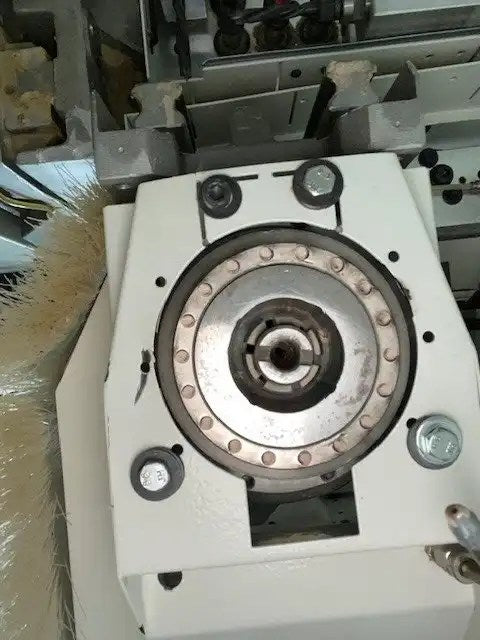

Routing Unit:
One Electro Spindle With ISO-30 Quick Release Tool Holder
Maximum Router Power - 9hp
Tool RPM 1,500-24,000
Left Or Right Hand Rotation Selected From Program
Grooving Saw:
X-Axis Grooving Saw Mounted In Front Of Drill Head
Grooving Saw Powered By Independent Three Hp Motor
Hewlett-Packard Office PC / NUM Plc Control:
Hardware Features:
15" VGA Color Display With High Resolution Graphics And Super VGA Card
101 Key Alphanumerical Keyboard And Mouse
233Mhz Pentium II Processor
Windows 98
4 GB Hard Disk
1.44 M Floppy Disk Drive, CD ROM Drive
32 MB Ram
2 Serial Ports And 1 Parallel Port (Bar Code Reader, External Modem, Printer)
Network Capacity – Network Card Not Included
NUM PLC Unit For Control Of Machine Operations
(PC Hardware Specifications May Be Updated Without Notification)
Software Features:
Simple Operator Programming And Operation Interface Featuring XILOG Software
Import Of The DXF, ASCII, Spread Sheet Or Files From SCM And Morbidelli CNC (PGM Format)
Operator Interface In English, Spanish Or 5 Other Languages
Linear And Circular Interpolation In The Three Axes
On-Board Calculator For Quick Problem Solving
Graphic Help Screens For Boring And Routing Operations
Parametric Programming Capacity Allows The User To Define Formulas Which Will Automatically Update Programs
When Panel Dimensions Are Changed
Complete Description And Management Of Installed Tools (Drills, Routers, Etc.) For An Easy Tool Selection And Programming
Machining Head Graphic Display And Tool Management
Part Graphics For Quick And Easy Checking Of Program Results
Graphic Part Display Screen For Positioning Of Supports And Cups During Though Cut Operations
Program Simulation For Last-Minute Pre-Production Checks
Zoom Function For A Precise Checking Of Individual Machining Steps
Panel Origin Shift To Process Special Shapes Or Profiles
Bar Code Operation
Machining Speed Can Be Selected To Match Material And Tooling
Program Hold Function To Stop Machining At Any Time. The Program Is Restarted At The Precise Point Of Interruption.
Dual Speed Override That Allows Adjustment Of Positioning Speed In Reference To The Programmed Speed
Self Diagnosis And Error Messages With Text Error Messages
Multitasking Function Enabling The Programming Or The Use Of All PC Functions While The Machine Is Running Or In Emergency State
Programming In Millimeters Or Inches.


Other Standard Machine Features:

Full Safety System Including Emergency Stops And Automatic Interlocks For Tool Changing And Maintenance
Electrical System In Compliance With International Safety Regulations
Service Kit For Use And Maintenance
Centralized Lubrication System
User Documentation In English
Full Electrical And Pneumatic Documentation
Autotransformer For Use Of Multiple Input Voltages (208/230/460



SPECIFICATIONS:

Worktable Capacity 2,250 X 900 Mm (88 1/2" X 35 7/16")
Working Range In Y Axis With Vertical Spindles (Line Drilling) 790 Mm (31 ½")
With Horizontal Drills 832 Mm (32 3/4")
With Grooving Saw 1023 Mm (40 1/4")
Stroke With Router In X Axis 2,250 Mm (88 1/5")
Stroke With Router In Y Axis 1,040 Mm (40 7/8")
Maximum Stroke Of Y Axis 1045 Mm (41 1/8")
Maximum Stroke Of Z Axis 200 Mm (7 3/4")
Maximum Panel Clearance 180 Mm (7")
Axis Speed (X&Y) 25 M/Min
Main Motor 3 HP (2.3kw)
Router Speed 1,500-24,000 RPM
Speed Of Drilling Chucks 4,000 RPM
Speed Of Grooving Saw 6,000 RPM
Grooving Saw Diameter 160 Mm
Grooving Saw Power 3 HP
Vacuum Pump Capacity 40 M3/Hr
Shipping Weight 2,400 Kg. (5,200 Lbs.)



ELECTRIC, AIR & DUST
REQUIREMENTS:

60 Amps @ 230V 3 Phase
1,745 CFM Via 200 Mm Dust Port
90 PSI Via 5/8" Line

Machine Location State:

Machine Location City:

Year: 2002

Make: SCM

Model: Tech 80

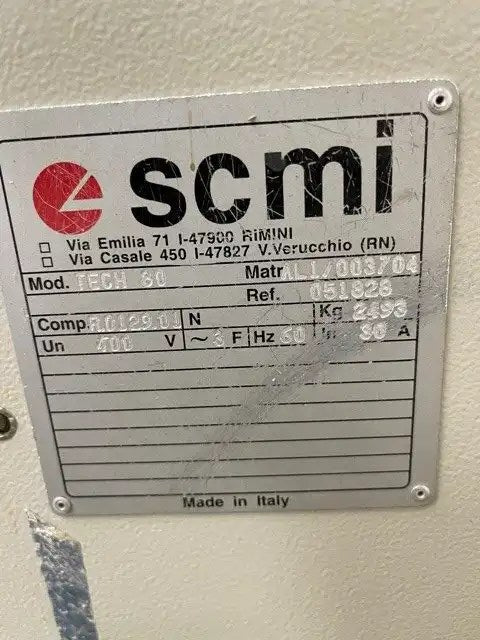

Serial No: AL1/003704

Phase/Voltage: Transformer 208/230/460, 3 Phase

Condition: Good

Any Known Issues:

In Production: No

Software Transfer: No

Access to Forklift for Loading: Yes

Loading Fee: $250.00

Shipping Dimensions: 148"L X 96"D X 96"'T

Shipping Weight: 5200

Shipping Brackets Available: No
