5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.

"X" Axis is 145" (3,683 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).

"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

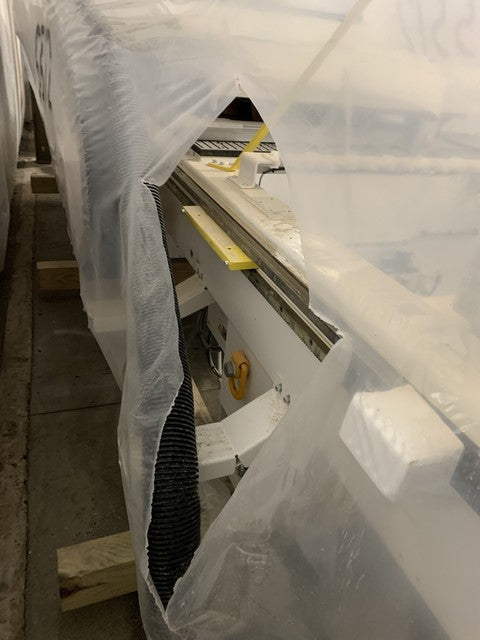

The head travels via AC brushless drives & THK linear motion guides on all axes.

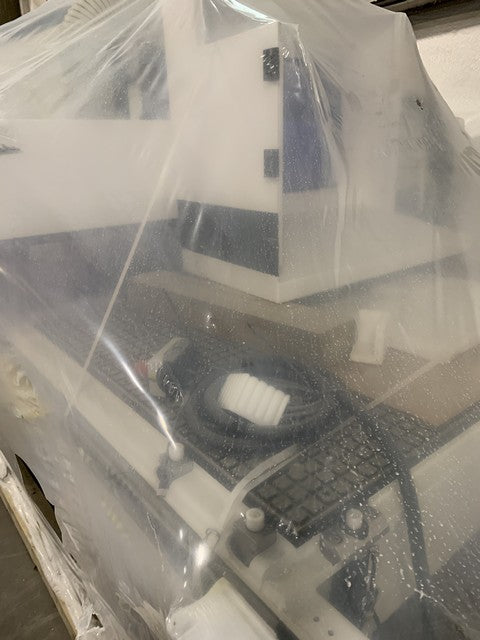

S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.

(1) 12 Kw (16 HP) High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.

14-Position Rotary Tool Changer

Touch-off pad.

Swing-up Tool Set-up stand

Boring unit with 3.6 HP (2.7 kW) motor, (12) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.

17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.

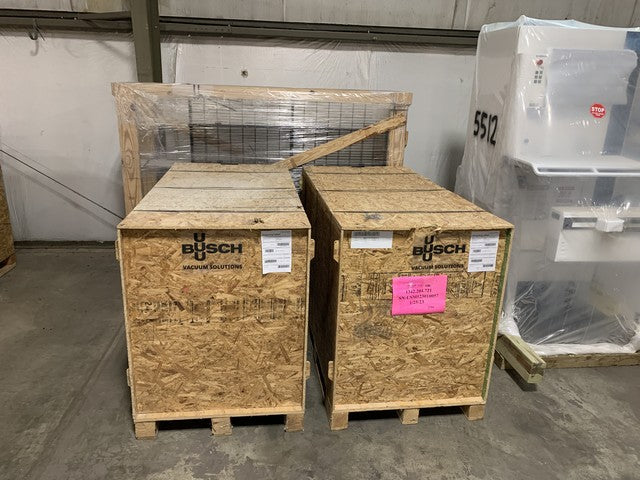

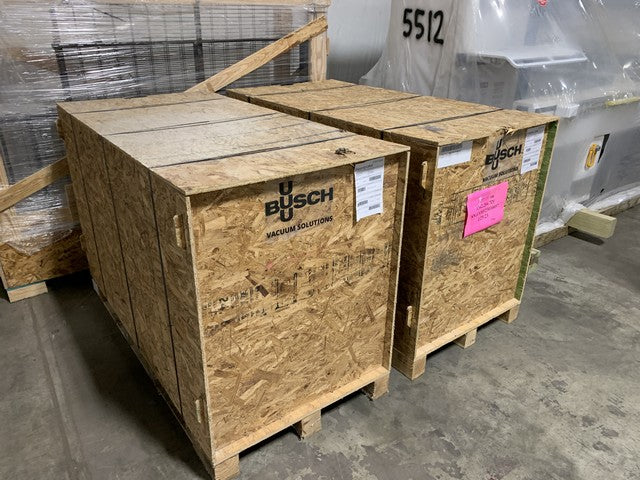

(2) 9 HP Busch "MINK MV0312B" vacuum pumps.

Product Description: 5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.

"X" Axis is 145" (3,683 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).

"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

The head travels via AC brushless drives & THK linear motion guides on all axes.

S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.

(1) 12 Kw (16 HP) High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.

14-Position Rotary Tool Changer

Touch-off pad.

Swing-up Tool Set-up stand

Boring unit with 3.6 HP (2.7 kW) motor, (12) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.

17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.

(2) 9 HP Busch "MINK MV0312B" vacuum pumps.

Machine Location State: Missouri

Machine Location City:

Year: 2022

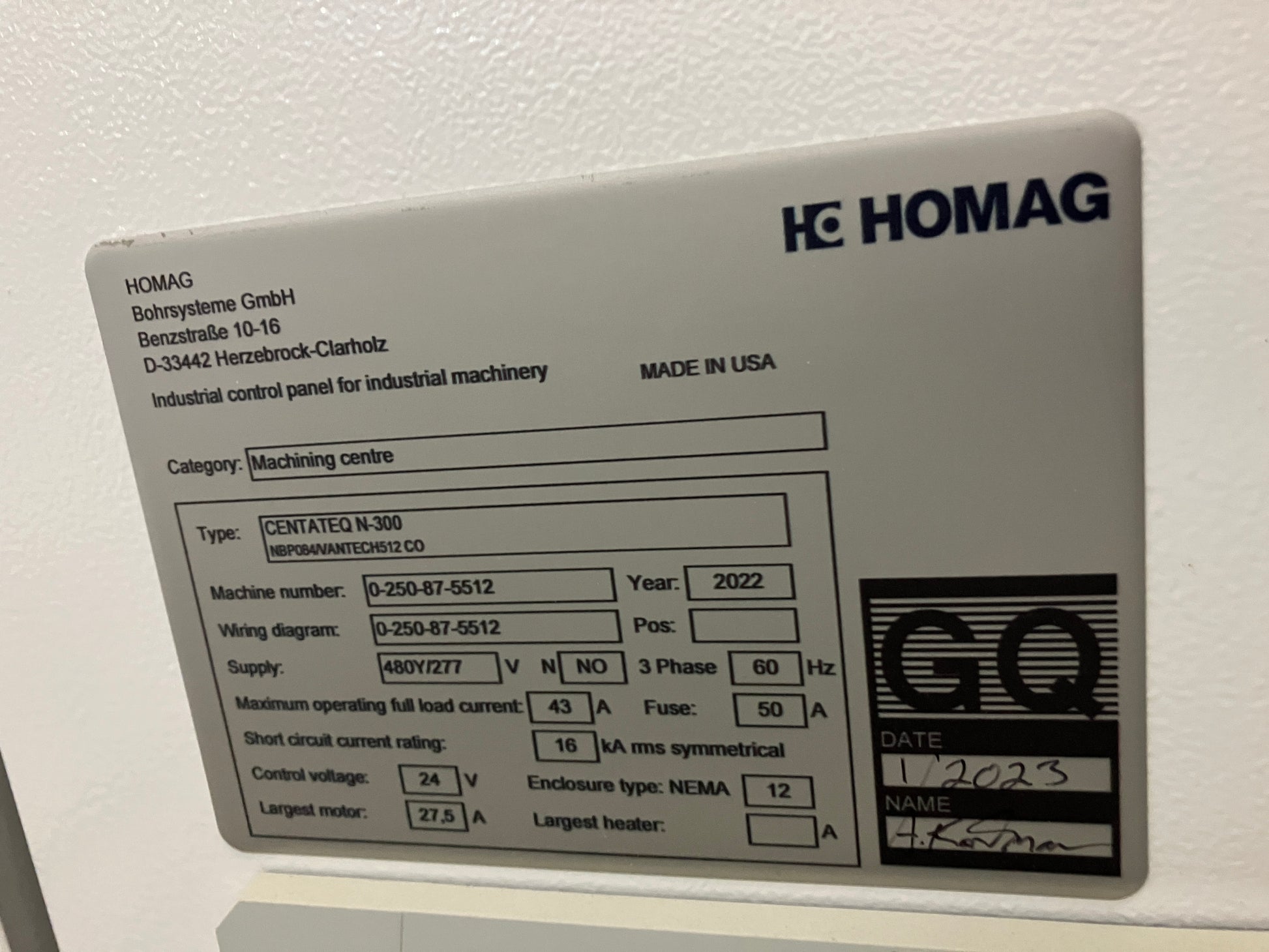

Make: Stiles Homag

Model: Centateq N 300

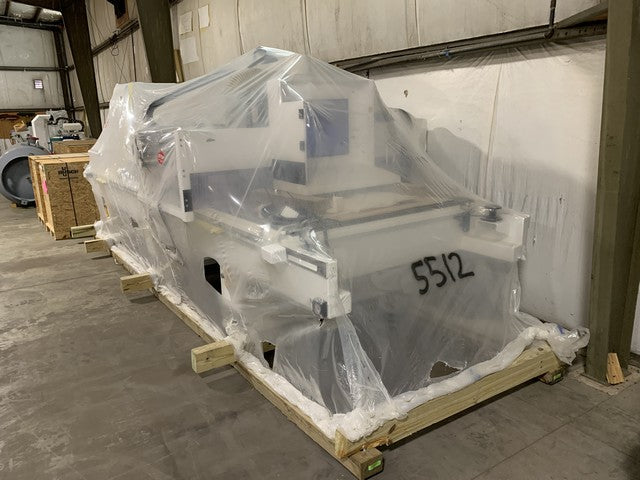

Serial No: 0-250-87-5512

Phase/Voltage: 3/490

Condition: NEW

Any Known Issues: NO

In Production: Never Installed

Software Transfer:

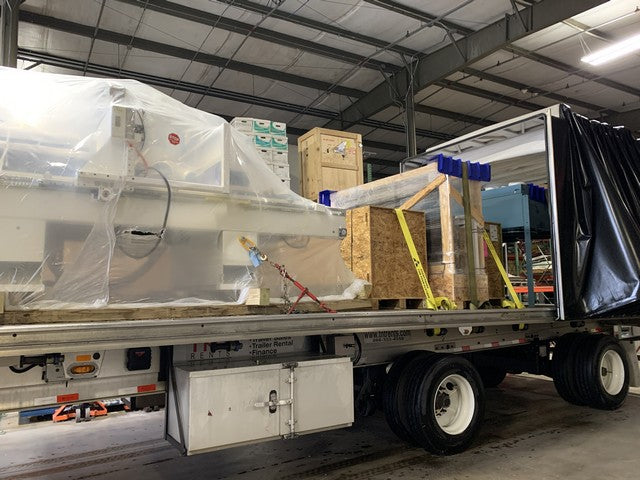

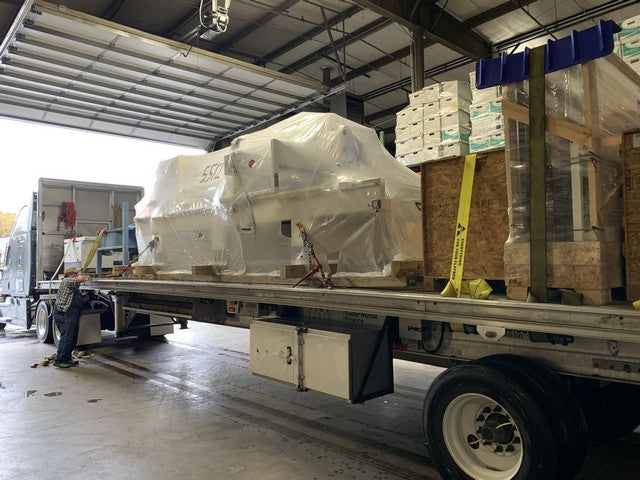

Access to Forklift for Loading: YES

Loading Fee: 1000

Shipping Dimensions:

Shipping Weight: 13000

Shipping Brackets Available: Yes
