Product Description:
X-Axis Stroke

3300mm

Y-Axis Stroke

2000mm

Z-Axis Stroke

200mm

Table Size

4X8

Max Feed Speed X-Axis

60m/Min

Max Feed Speed Y-Axis

60m/Min

Max Feed Speed Z-Axis

20m/Min

N.1 ATC Head Speed

1,000-24,000rpm

N.1 ATC Head Spindle

HSK-63F

N.1 ATC Head Power

7.5kW

N.2 Multi Drill Rotation

4800rpm

N.2 Shank Of Drill

10mm

N.2 Multi Drill Power

1.5kW

Air Pressure Hose

6kg/Cm2

Air Consumption

500L/Min

Suction Capacity For Main Spindle

2695M/HR

Suction Connection At Customer

2 (Machine Body)

NC Controller

Syntec

Weight

8,400lbs - 3800KG

(May Vary Depending On Accessories)

Machine Location State:

Machine Location City:

Year: New/Factory Demo

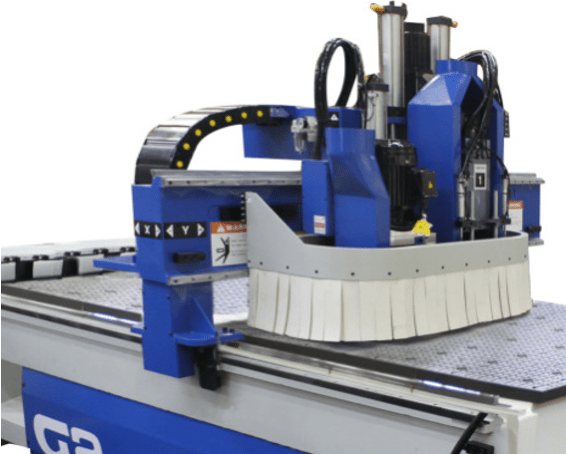

Make: Giben Anderson

Model: G2 Genesis

Serial No:

Phase/Voltage: 208-240-480 Volt 60 Hz +/- 5 %

Condition: Excellent

Any Known Issues: NO

In Production: No

Software Transfer: Yes

Access to Forklift for Loading:

Loading Fee: NA

Shipping Dimensions:

Shipping Weight: 8400 Lbs

Shipping Brackets Available: Yes
