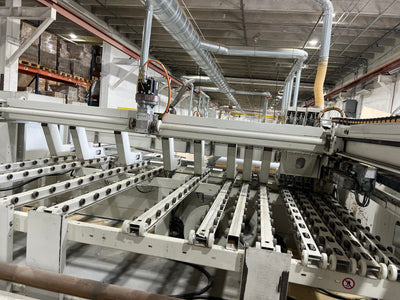

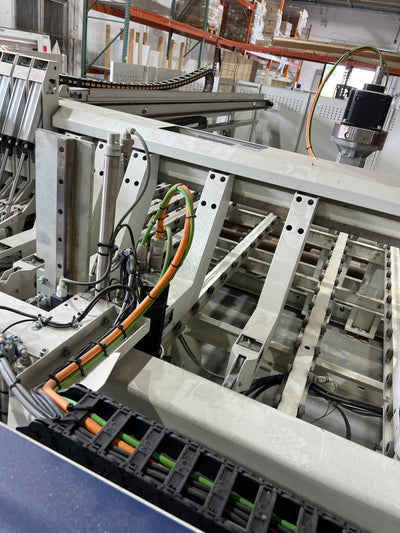

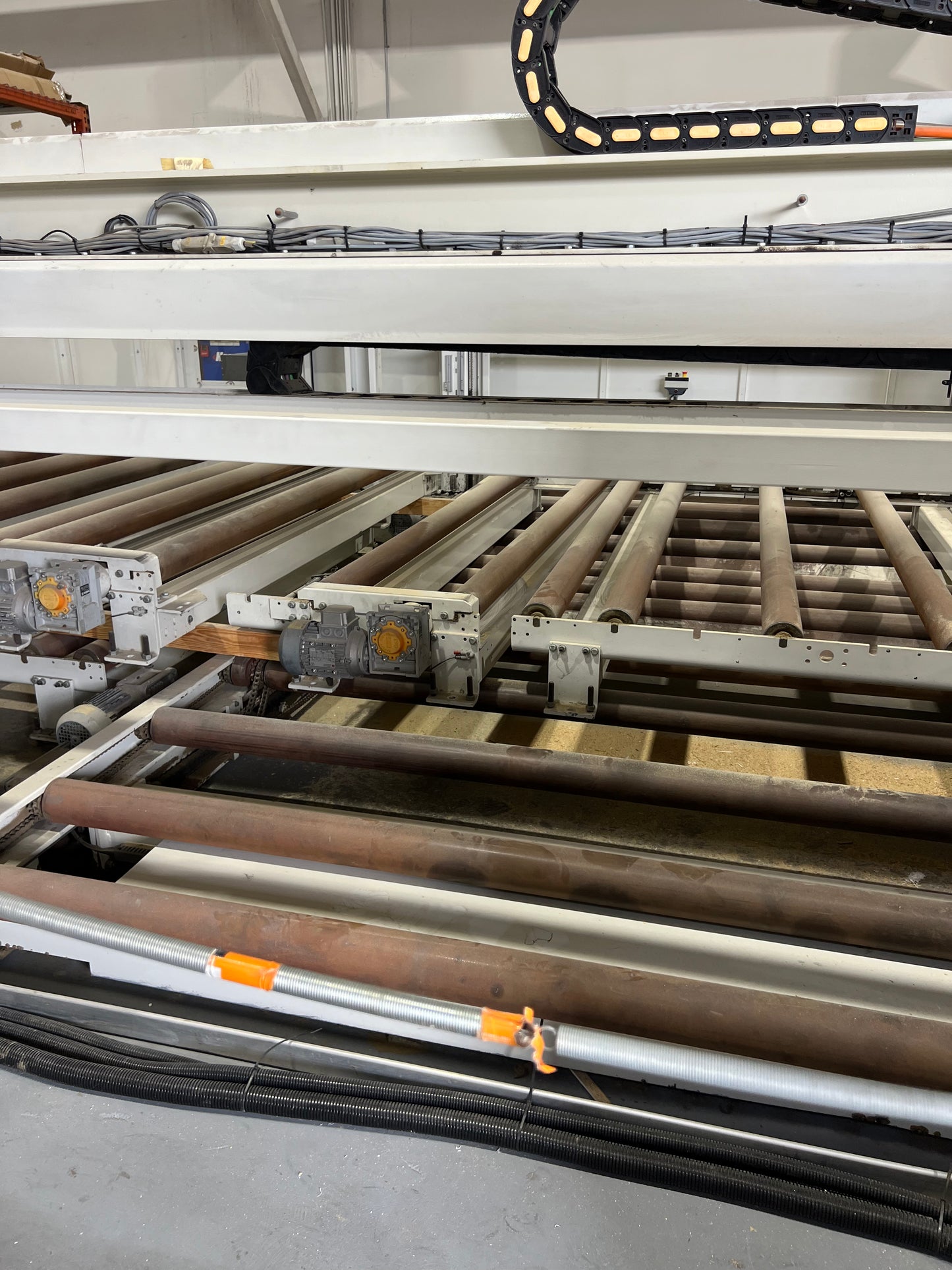

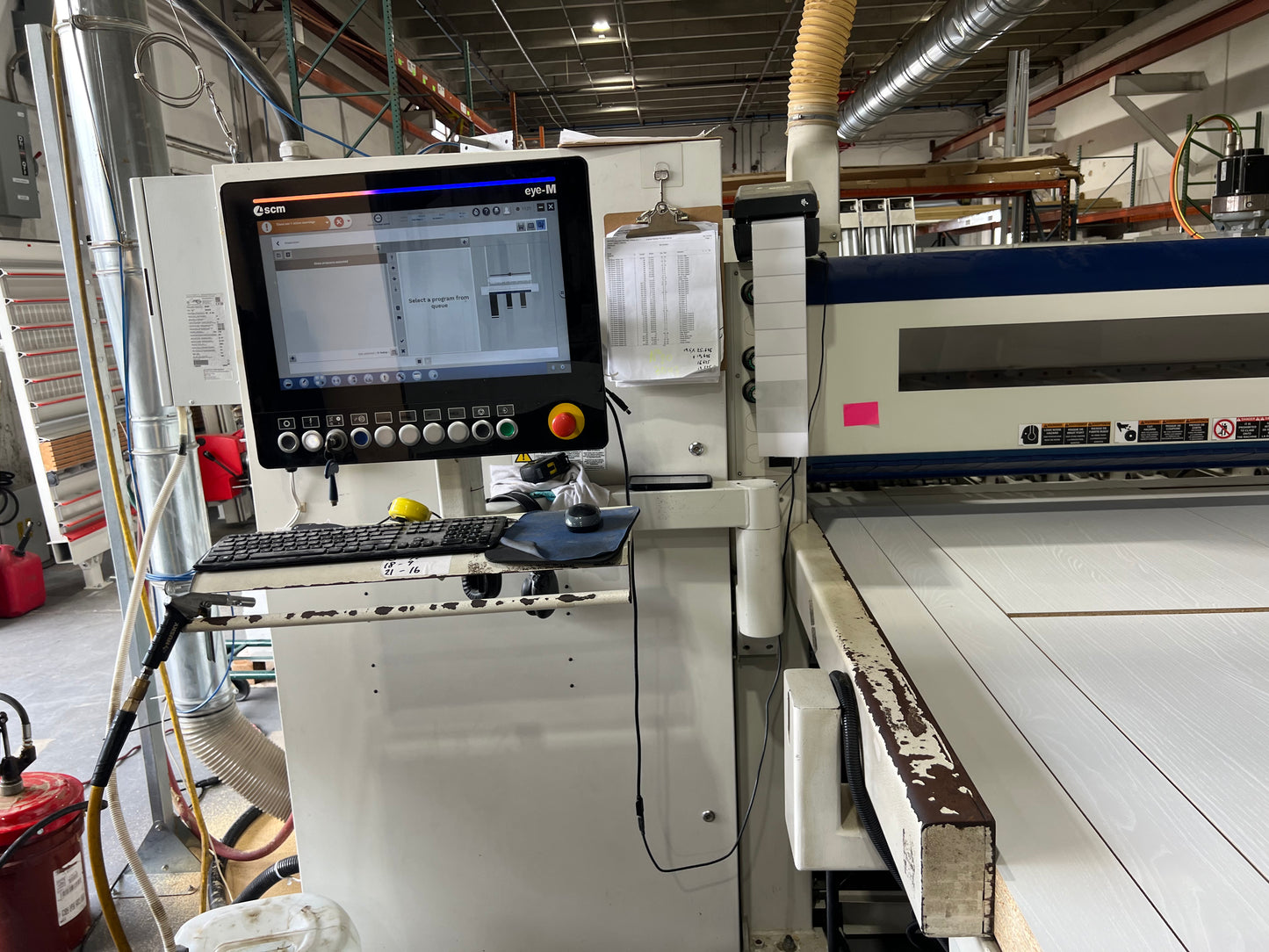

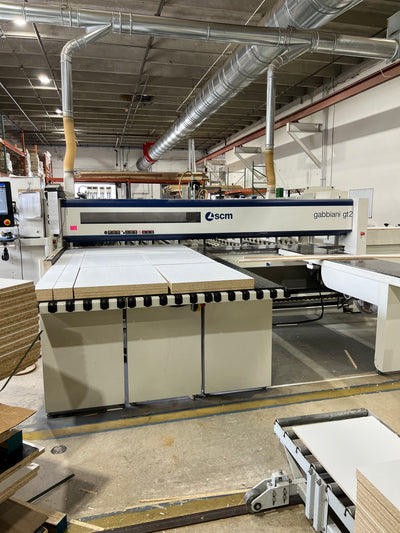

2021 Gabbiani GT 2 115 Rear Load Panel Saw Sizing System - Florida
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
Excellent used SCM Gabbiani Panel Saw. Make us an offer! 678-925-3556
TECHNICAL DATA
|
Motor power - 60hz (star-delta start) |
Hp |
30 |
|
Rotating speed – 60 hz |
rpm |
4680 |
|
Blade diameter |
mm |
400 (15.75”) |
|
Blade shaft diameter |
mm |
80 (3.15”) |
|
SCORING SAW BLADE |
||
|
Motor power – 60 hz |
Hp |
3 |
|
Rotating speed – 60 hz |
rpm |
7620 |
|
Scoring saw blade diameter |
mm |
200 (7.87”) |
|
Scoring blade shaft diameter |
mm |
80 (3.15”) |
|
INSTALLATION |
||
|
Installed motor power |
kW |
19÷25 |
|
Machine voltage |
|
480 V / 60 Hz |
|
Compressed air consumption |
NL/min |
300 |
|
Requested operating pressure |
bar |
7 |
|
Extraction flow rate |
m3/h |
5200 |
|
Exhaust speed |
m/s |
28 |
|
Exhaust outlet diameter |
mm |
3x120 + 1x150 |
Product Description:
Machine Location State: Florida
Machine Location City: Miami
Year: 2021
Make: SCM Gabbiani
Model: GT 2 115
Serial No: AE/00002156
Phase/Voltage: 3 phase 230 V 60HZ
Condition: Excellent
Any Known Issues: NONE
In Production: Yes
Software Transfer: Yes- Optimizing Software included
Access to Forklift for Loading: Yes
Loading Fee: TBD
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
