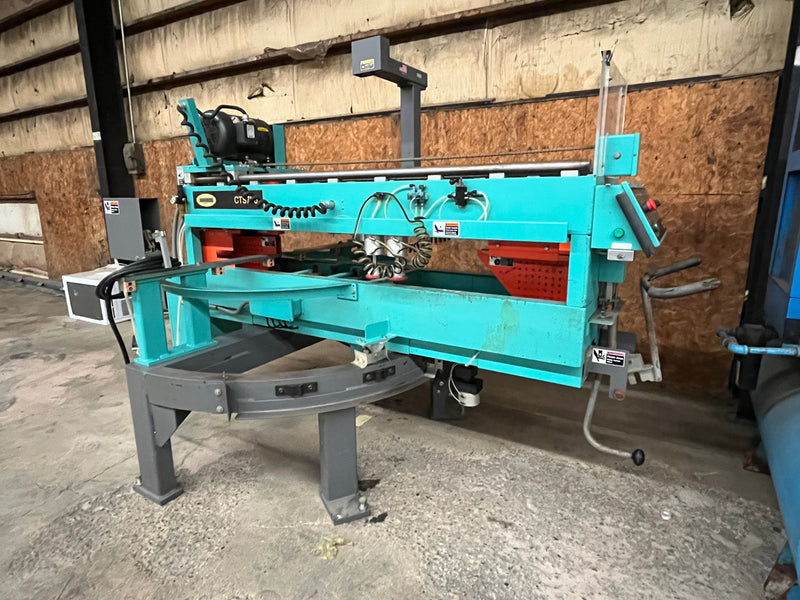

EDGETECH CTS-730 COUNTERTOP SAW

Designed for cutting and mitering post formed, self-edged, coved or solid surface countertops with bolt mortising all in a single operation.

Product Description: 5 HP Belt driven main motor, 0.5 HP feed drive motor

5-3/4" depth of cut with build-up (5" without build-up)

45" crosscut capacity at 90°, 42" at 22-1/2°, 3" cut at 45°

Upper machine structure rotates to left and right to (5) fixed stops at miter positions of 90°, 45°, right and left, and 22-1/2° right and left, pneumatically actuated index pin secures position

Variable feed speed from 0 to 45 FPM in cutting direction, 45 FPM fixed return speed

16" Diameter blade capacity, 1" diameter arbor

Hardened and ground saw carriage guides with linear bushings

(4) 1-3/4 HP high speed router motors for routing the draw bolt mortises, 1/2" dia. x 2-1/4" long bits, full visible router template with rotating pin to reduce template wear

(4) Independently positioned pneumatic hold downs for different top sizes

Machine Location State: Michigan

Machine Location City: Grand Rapids

Year:

Make: EDGETECH

Model: CTS-730 COUNTERTOP SAW

Serial No: 07021350

Phase/Voltage:

Condition: Good Running Condition

Any Known Issues:

In Production: iBID WH1

Software Transfer: NA

Access to Forklift for Loading: Yes

Loading Fee: $250

Shipping Dimensions: 102" X 67" X 75"

Shipping Weight: 3200

Shipping Brackets Available:
