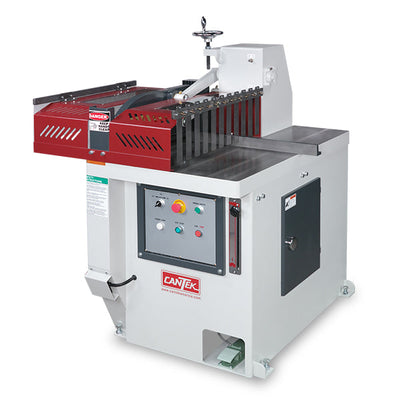

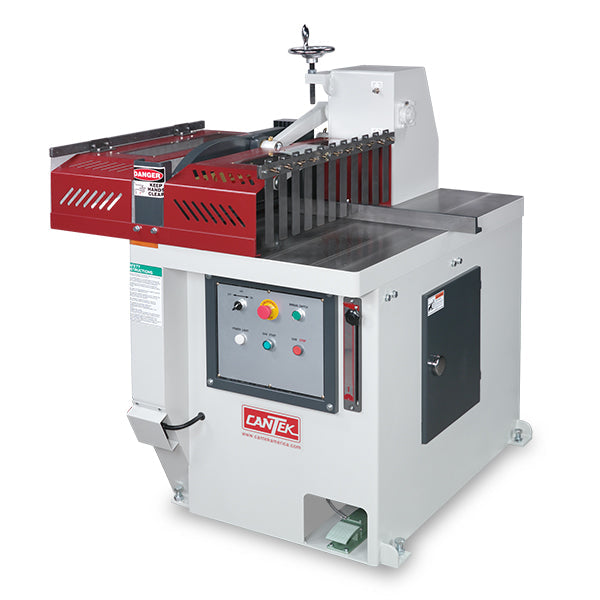

Cantek | PCS30 30″ Pneumatic Chop Saw 230V, 3PH. 460V available at additional cost.
Regular price
$17,900.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
Large capacity crosscutting solution.
The Cantek PCS30 30″ Pneumatic Chop Saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.
- Large cutting capacity from 2”x27” up to 10”x10”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
- Available in Right-Hand & Left-Hand configuration

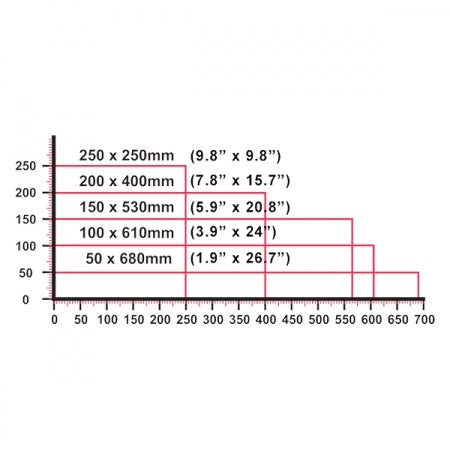

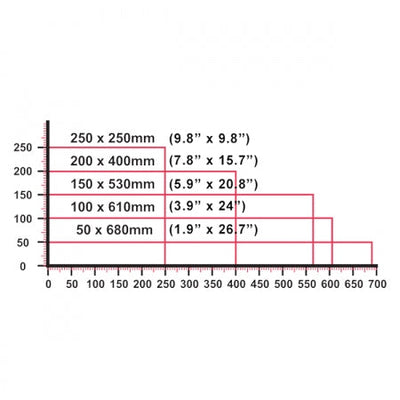

- Cut off capacity (thickness x width): 2″x27″, 4″x24″, 6″x21″, 8”x16”, 10”x10”
- Powerful 15HP main motor (20HP optional)

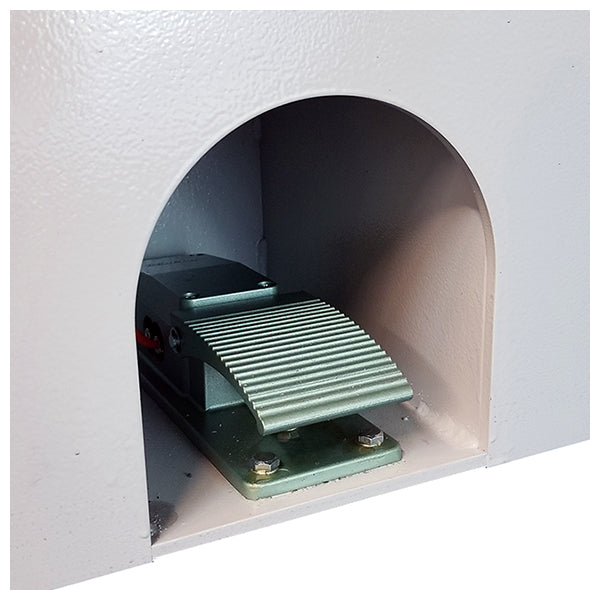

- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
- Adjustable cutting cycle from 10~ 15 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
Cutting capacity (thickness x width) |
2″x27″, 4″x24″, 6″x21″, 8″x16″, 10”x10” |
Cycle speed |
10~15 strokes/min |
Cycle operation |
Pneumatic |
Saw blade size |
30” |
Saw arbor diameter |
2″ |
Saw blade speed |
1600 RPM |
Dust exhaust diameter |
Ø5″ x 3 |
Motor |
15 HP (20HP optional) |
Table size |
50.2″ x 31.9″ |
Net weight |
1430 lbs |
Gross weight |
1694 lbs |
Packing dimensions (L x W x H) |
56.3” x 40.5” x 65” |

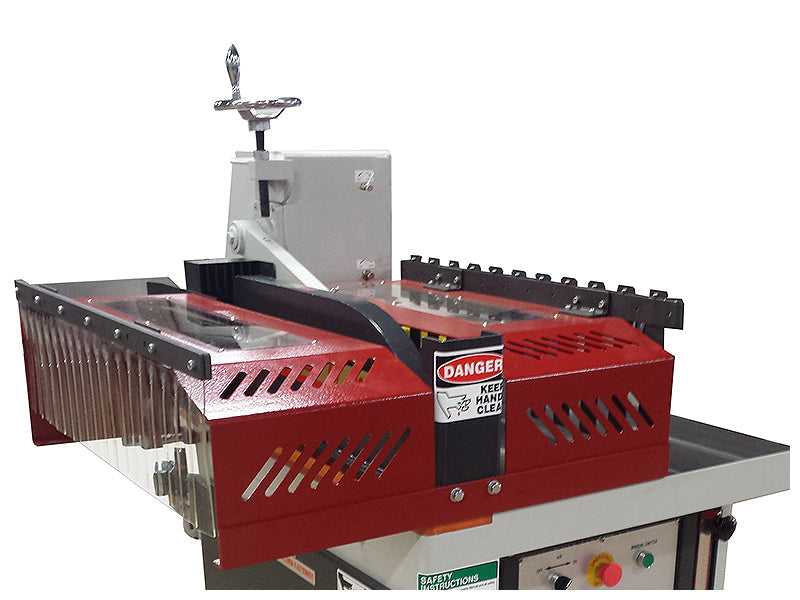

- Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
- Infeed guard has adjustable fingers to minimize opening
- Door safety limit switches with extended security bolt
- Emergency stop button

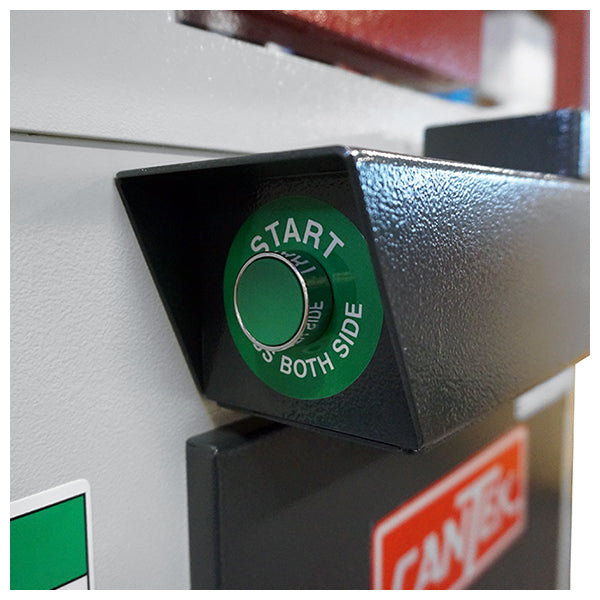

- Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
