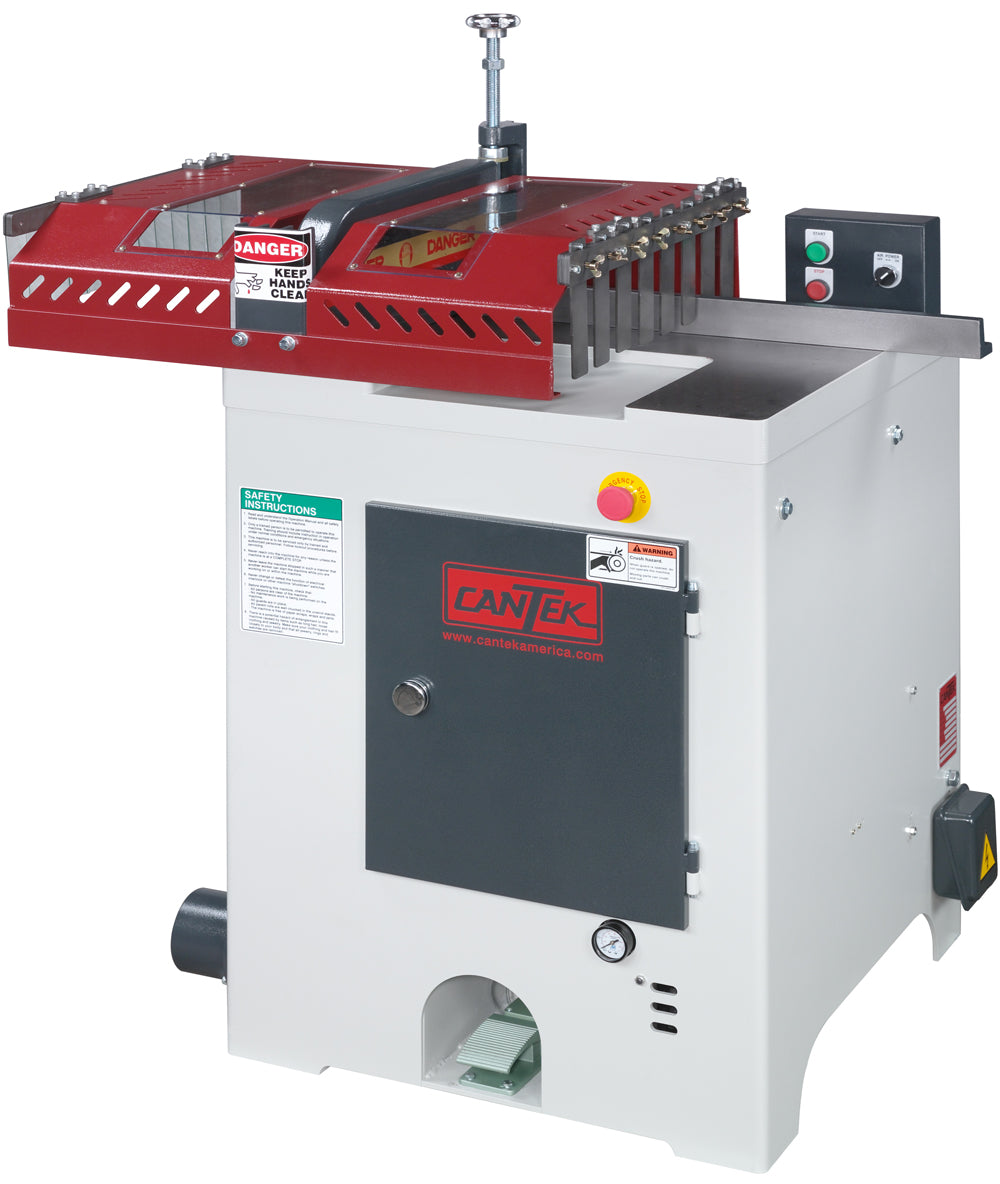

CANTEK PCS18 Pneumatic Cut-Off Saw 230V, 3PH. 460V is available at additional cost.
Regular price
$6,600.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
- Cantek is available in right- and left-hand and configurations
- Cutting off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
- Powerful 10 HP main motor
- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine
- Fast cutting rate up to 45 strokes per minute.
- Cast iron table surface is precision ground assuring high cutting accuracy
- Safety blade guard with adjustable fingers for added safety
- Material clamp is easily adjusted for workpiece thickness variation
- CSA magnetic switch
- Door safety limit switch with 3″ long screw
Cutting capacity (thickness x width) | 2″ x 12″, 3″ x 11″, 4″ x 10″ |
Cycle speed | 45 strokes/min |
Cycle operation | Air |
Saw blade size (optional) | 18″ |
Saw arbor diameter | 1″ |
Saw blade speed | 3600 RPM |
Dust exhaust diameter | Ø4″ (100mm) |
Motor | 10 HP |
Table size | 26” x 27 ½” (660 x 700 mm) |
Net weight | 770 lbs. (350 kgs) |
Gross weight | 902 lbs. (410 kgs) |
Packing dimensions (L x W x H) | 37” x 33 ½” x 53.2” (940 x 850 x 1350mm) |
