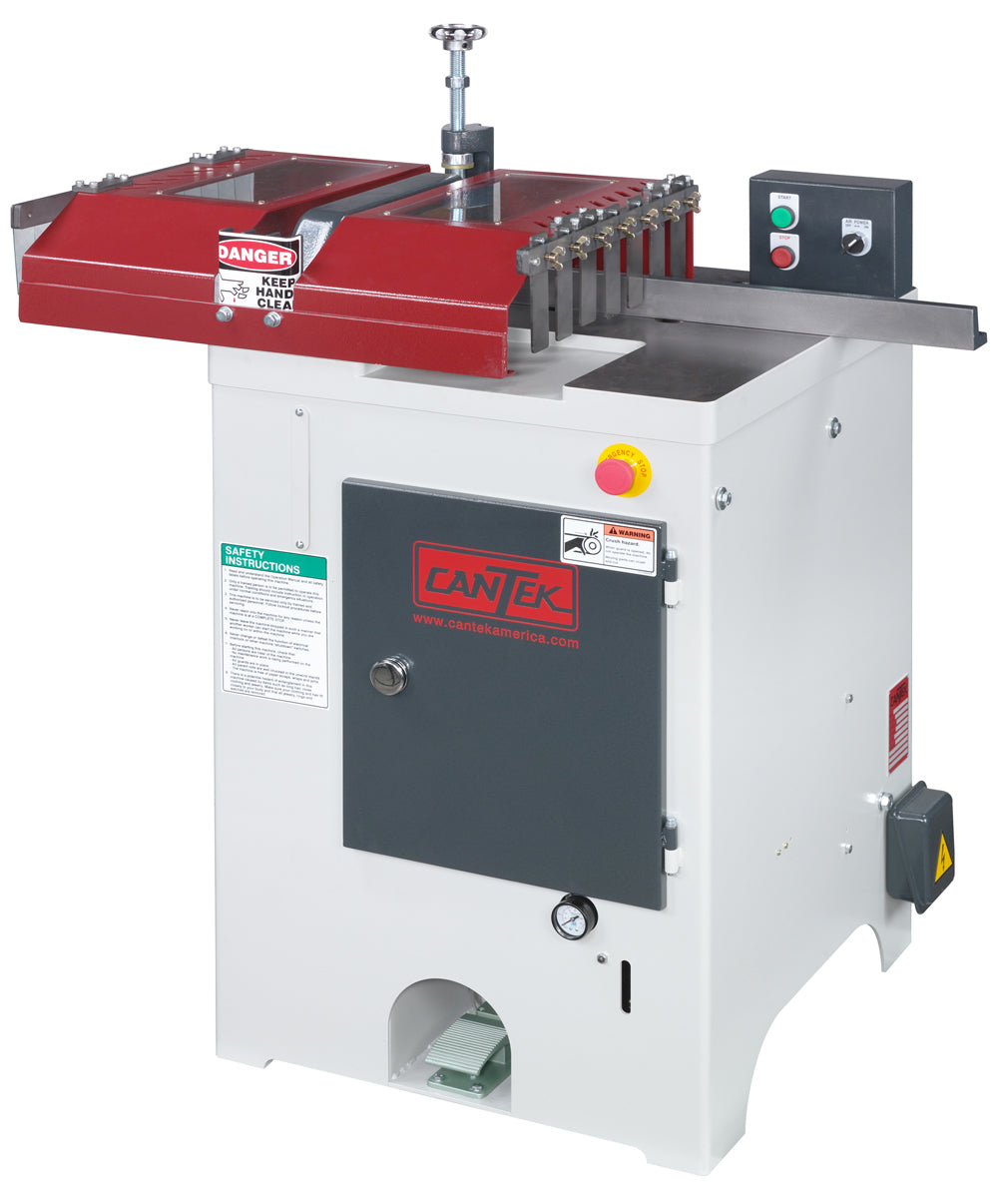

CANTEK PCS14D Pneumatic Cut-Off Saw w/ Dual Push Button Control (LH or RH) 230V, 3PH. 460V available at additional cost.
Regular price
$6,430.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
- Left Hand or Right Hand configuration available
- Cutting off capacity (thickness x width): 1″ x 10″, 2″ x 9″, 3″ x 8″
- Powerful 5HP main motor
- Dual push buttons for safety with adjustable cutting speed from the front of the machine
- Fast cutting rate up to 95 strokes per minute.
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Safety blade guard with adjustable fingers for added safety.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
- Door safety limit switch with 3” long screw
| Cutting capacity (thickness x width) | 1″ x 10″, 2″ x 9″, 3″ x 8″ |
| Cycle speed | 95 strokes/min |
| Cycle operation | Air |
| Saw blade size (optional) | 14″ |
| Saw arbor diameter | 1″ |
| Saw blade speed | 4100 RPM |
| Dust exhaust diameter | 4″ (100mm) |
| Motor | 5 HP |
| Table size | 24.8” x 23.2” (630 x 590 mm) |
| Net weight | 530 lbs. (240 kgs) |
| Gross weight | 640 lbs. (290 kgs) |
| Packing dimensions (L x W x H) | 30” x 30” x 51.2” (770 x 760 x 1300mm) |
| Electrics | 230/3/60 (15.2 AMPS Full Load) |
