CANTEK PCS-30 Cut Off Saw 203V, 3PH. 460V available at additional cost.
Regular price
$17,900.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

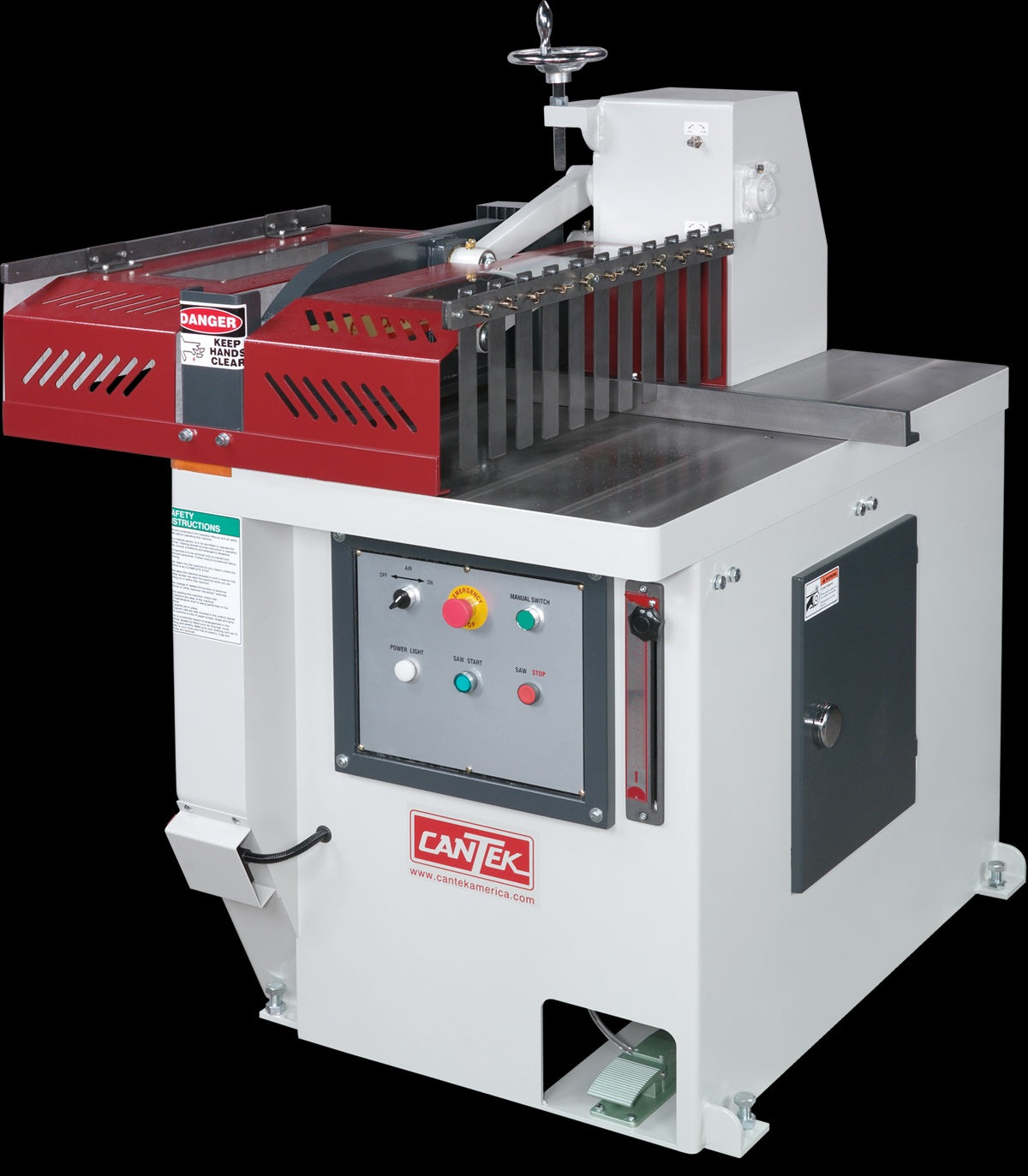

- Picture shown left-hand model is standard. Right-hand model (optional)
- Motion cycles are pneumatically operated, and conveniently controlled by a foot switch. (Double hands pressing is available[optional])
- 30” sawblade included
- Normal cutting thickness adjustment is made by means of a knob. Adjusting cutting suize according to scale
- Fast cutting rate up to 10 ~ 15 times per minute. Cycle speeds are adjustable
- Powerful 15HP motor drive (optional: up to 20HP)
- Easy belt tension adjustment of replacement
- Infeed and outfeed roller conveyors (optional)
- The lubricator is used for lubricating the clamp mechanism, which effectively upgrades smoothness of clamping motions
- Telemecanique Electrics
- CSA Electric Control Box
- CE Safety Switch
Note: A Saw Blade is included with the machine
| Cycle speed | 10 ~ 15 strokes/min |
| Cycle operation | Pneumatic |
| Saw blade size (included) | 30” |
| Saw arbor diameter | 2” |
| Saw bade speed | 1600 rpm |
| Dust exhaust diameter | Ø4” x (2) |
| Motor | 15 HP (20HP optional) |
| Table size | 50.40” x 32.28” (1280 x 820 mm) |
| Net weight | 1433 lbs (650 kgs) |
| Gross weight | 1697 lbs (770 kgs) |
| Packing dimensions (LxWxH) | 56.30” x 40.55” x 64.96” (1430 x 1030 x 1650 mm) |
