From cabinet parts to cabinet doors, this edgebander can do it all.

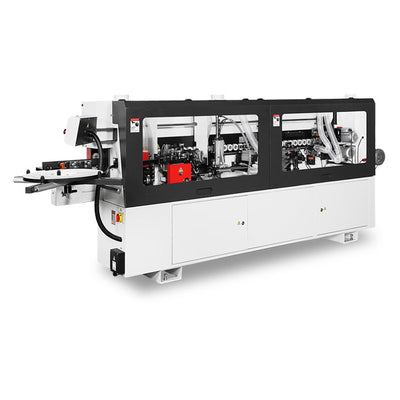

The Cantek MX370P Automatic Edgebander with Premilling and Corner Rounding is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, corner rounding, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
- Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
- Quick change glue pot allows you to change glue colours in minutes.
- Premilling ensures a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint.
- The corner rounding function finishes the ends of cabinet doors and more with a radius edge, eliminating any manual rework of the panel.

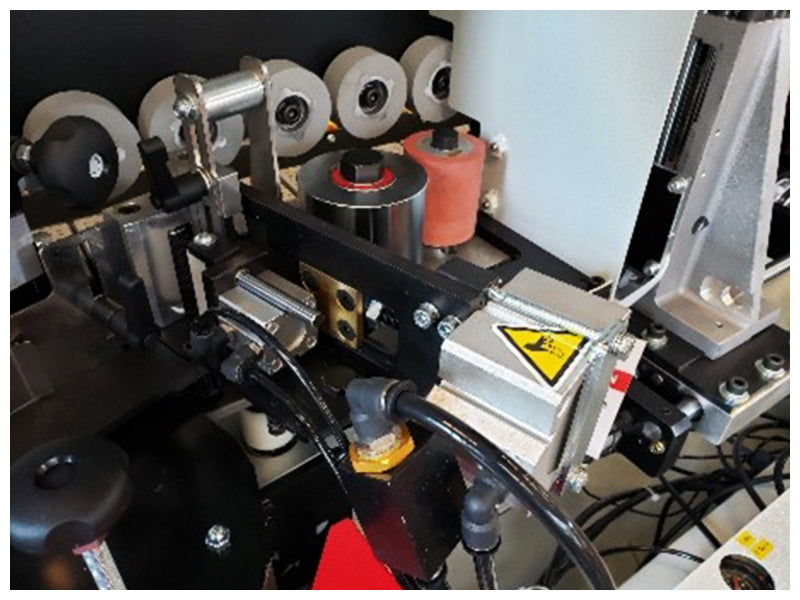

- Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed.
- Conveyor chain feed system for reliable results.

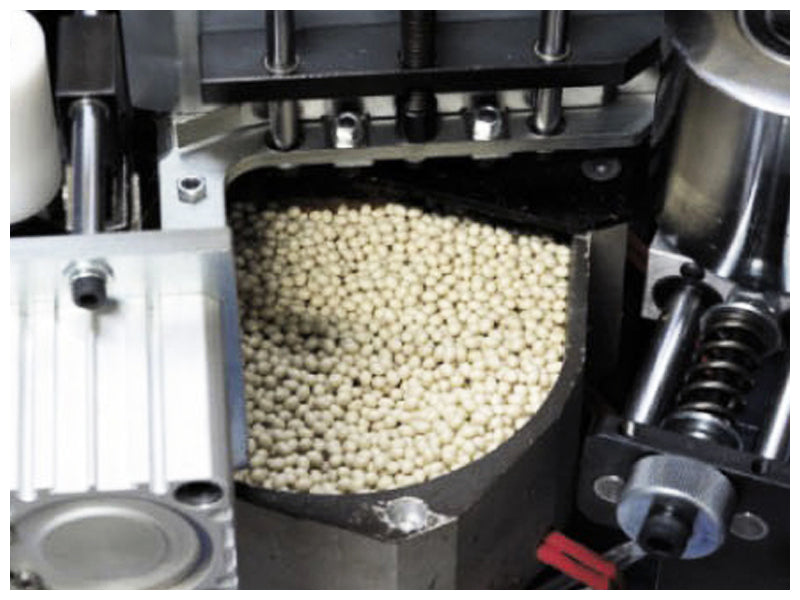

- Teflon-coated hot-melt glue pot.
- Heated infeed fence for pre-heating the panel for optimum glue penetration.
- PLC control system with LED display and keypad.
- Workpiece is fed by chain.
- Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS.

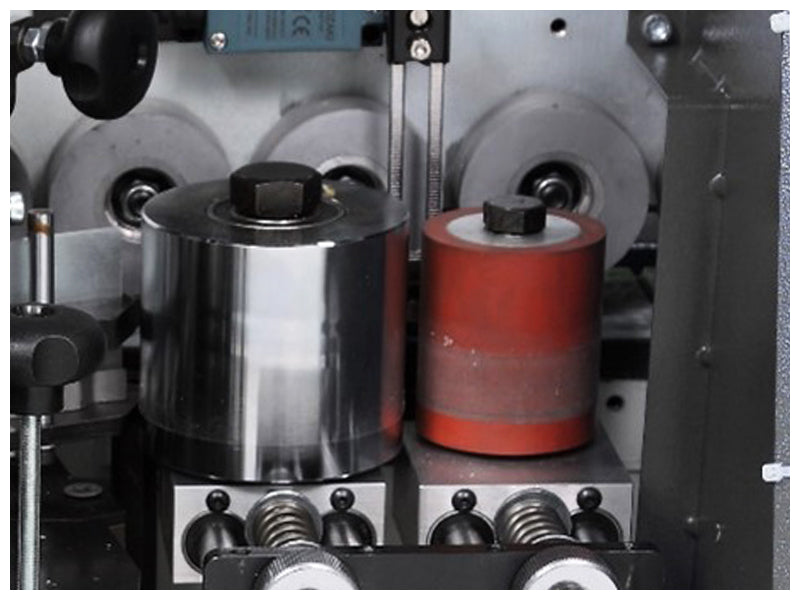

- Spring-loaded pressure unit with (2) pressure rollers.
- Heavy-duty pressure beam with extendable workpiece support.
PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.
END TRIM
High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades.
TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.
CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.
RADIUS SCRAPING
Radius scraper with 2mm radius.
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.
Feeding speed |
29 FPM |
9 meters/min. |
Panel thickness |
0.315”~1.77” |
8~45 mm |
Edge thickness |
0.0158”~0.118” |
0.4 ~ 3 mm |
Min. panel width |
3 ¾” |
95 mm |
Min. panel length |
6.7” |
170 mm |
Working table height |
38” |
960 mm |
Extension support width |
22” |
560 mm |
Dust collection outlet |
Ø 5” x3 |
Ø 127 mm x3 |
Electrical consumption |
10.9 HP |
6.7 KW |
Electrical |
230/3/60 |
26 Full load amps |
Machine weight |
2024 lbs |
910 kgs |
MOTOR SPECIFICATIONS
Feeding motor |
1.5 kW |
Pre-milling motors (2 pcs) |
1.5 kW each (12000 RPM) |
Glue spindle motor |
0.25 kW |
Front/rear trimming motor |
0.22 kW (12000 RPM) |
Upper trimming motor |
0.37 kW (12000 RPM) |
Lower trimming motor |
0.37 kW (12000 RPM) |
Corner rounding motor |
0.37 kW (12000 RPM) |
Upper buffing motor |
0.12 kW (3000 RPM) |
Lower buffing motor |
0.12 kW (3000 RPM) |
Pre-heating |
0.4 kW |
Glue pot |
1.315 kW |
