Compact design with best-in-class edgebanding result.
The Cantek MX340M Automatic Edgebander is an entry level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry the MX340M can output high quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
- Compact design makes it the ideal edgebanding solution for small workshops
- Precise adjustments for optimum edge quality
- Chain feed system ensures consistent feeding of material for consistent results
- Available in 230V 1 or 3 phase
- PLC control system with LED display and keypad

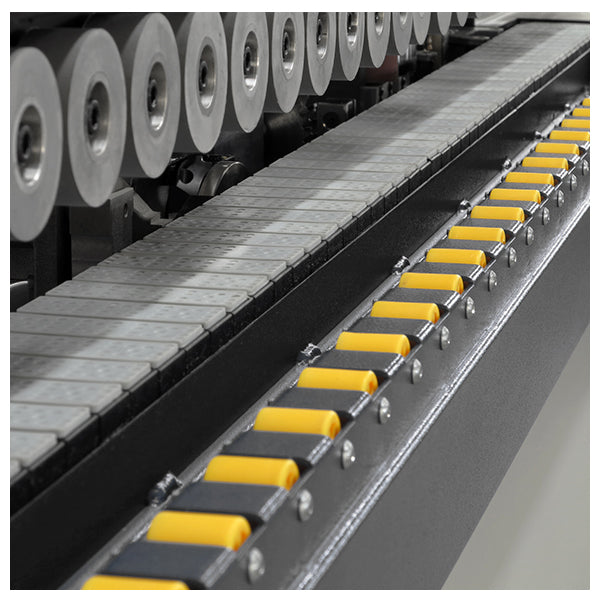

- Workpiece is fed by chain
- Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
- Automatic edge feeding with a thickness capacity of 0.4-3 mm; strip material up to 4mm can be hand-fed
- Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
- 2 kg (2.64 lb) Teflon-coated hot-melt glue pot
- Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
- Heavy duty pressure beam with extendable work-piece support
- Heated infeed fence for pre-heating the panel for optimum glue penetration
- Mechanical digital readouts for convenient and quick adjustment to the working units & thickness
- END TRIM
8800 RPM dual saw blade (80mm / 3.15″) end trimming unit - TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming - RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required - BUFFING
2800 RPM top & bottom buffing units to polish the machined edge
INCH |
METRIC |
|
Feeding speed |
23 FPM |
7 m/min. |
Panel thickness |
0.472~1.77″ |
12~45 mm |
Edge thickness |
0.0158″~0.118″ |
0.4 ~ 3 mm |
Minimum panel size |
4 ¾” x 4 ¾” |
120 x 120mm |
Working table height |
33.5″ |
850 mm |
Dust collection outlet dia. |
2 x 4″ |
2 x 100 mm |
Total connected power |
5 HP |
3.8 KW |
Max. machine dimensions (LxWXH) |
115″ x 47″ x 48″ |
2921 x 1194 x 1220mm |
Machine weight |
968 lbs. |
440 kgs. |
Shipping dimensions (LxWxH) |
89″ x 29″ x 50″ |
2261 x 737 x 1270mm |
Shipping weight |
1115 lbs. |
507 kgs. |
