• Designed for sanding linear profiled wood on three sides
• Brushing heads consist of abrasive cloth strips and cleaning brushes and are design to access profiled components.
• Ideal for sanding and defibbing linear products including:
  • Moldings, skirting, architrave, flooring
  • MDF, hardwoods and softwoods
  • Paint, sealer, and lacquer sanding

• Main Frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.

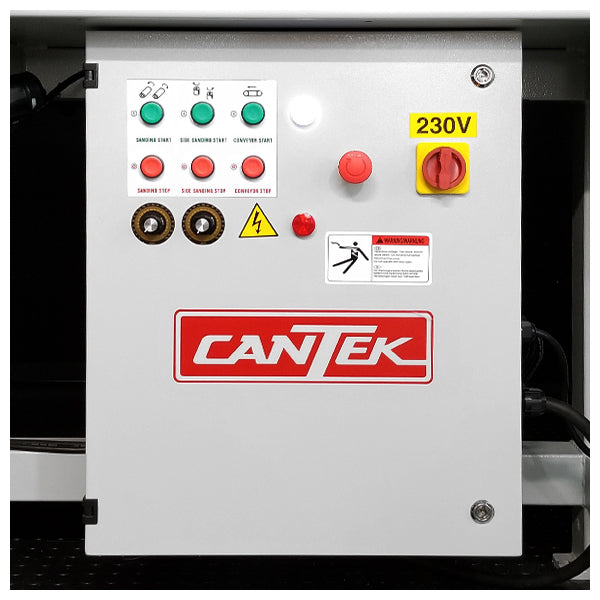

• Centralized Control Panel for operator convenience. Clearly Identified & colour coded push buttons simplifying setup & operation
• Variable speed adjustment by inverter (VFD’s) to all brush sanding heads (200-1200 RPM) for optimum sanding results

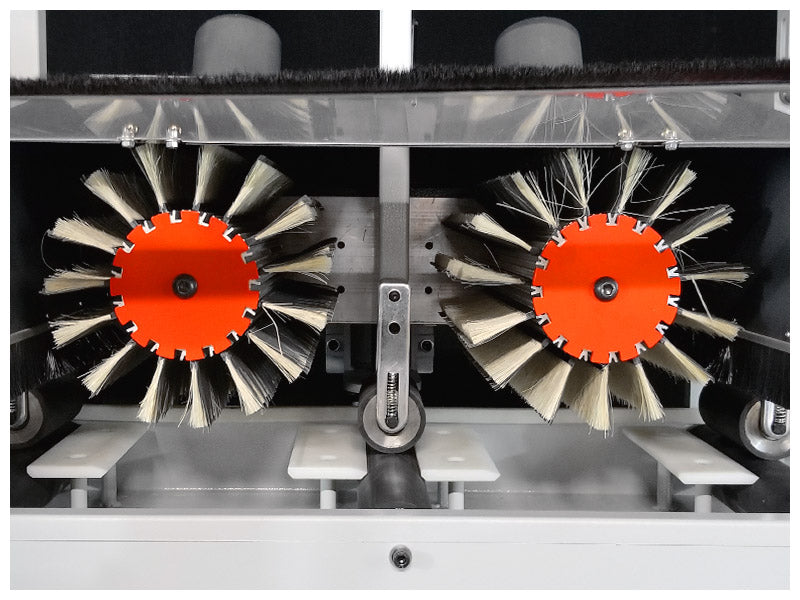

• (2) Sets of top brushing sanding heads with working height adjusted by handwheel and can be set on an angle for bevel siding & angled mouldings

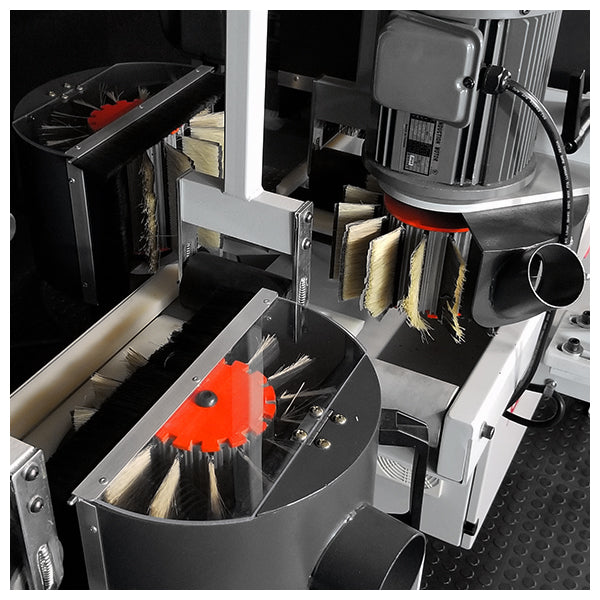

• (1) left side brush sanding head is adjustable up/down, in/out and can be set on an angle
• (1) right side brush sanding head which can be adjusted up/down and in and out and can be set on an angle
• (1) Additional left side sanding head is adjustable up/down, in/out, and can be set on an angle

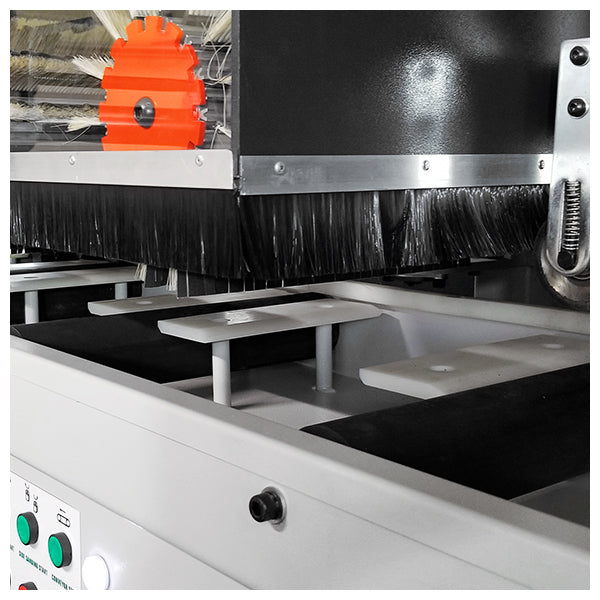

• Top Press Rolls Working Height adjusted by hand wheel.
• Brushing head consists of cleaning brush units and abrasive cloth units

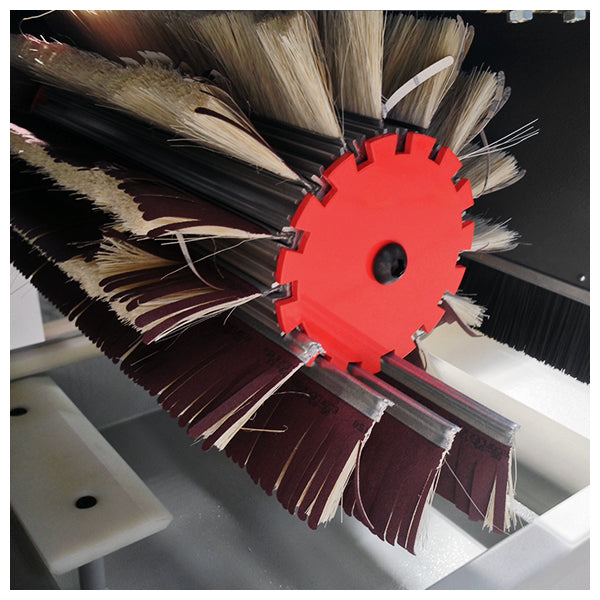

• The dovetail pocket design allows for easy abrasive/brush replacement.
