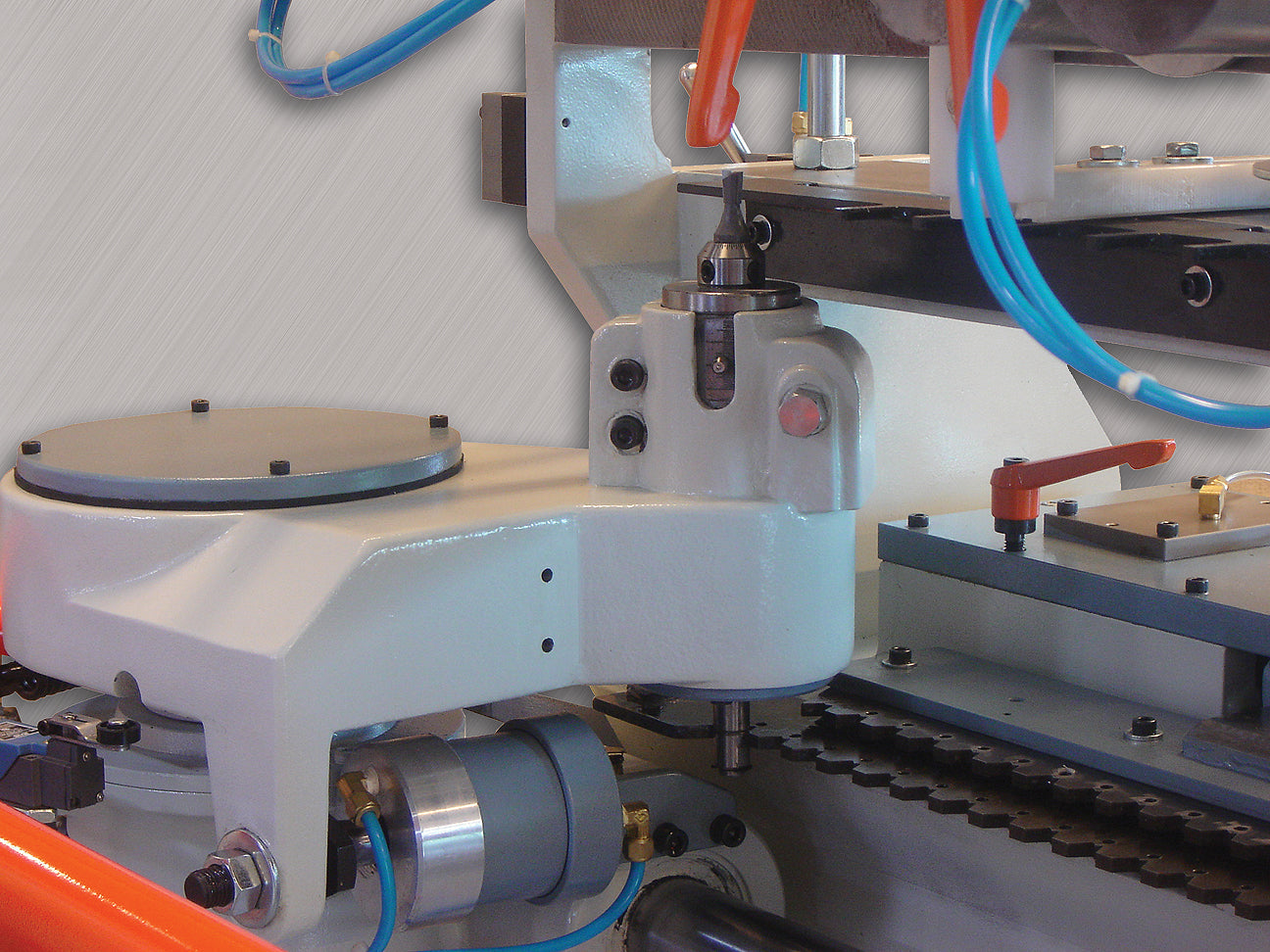

· 21500 RPM spindle rotation for an extremely fine finish on dovetail joints

· High RPM spindle allows for precision machining of plywood & solid drawer sides

· Independent adjustment of both the tenon and the mortise depth for precise fitting of dovetail joints

· Dust hood for milling cutter

· Safety rail in front of spindle motor

· High quality pneumatics for smooth feeding, resulting in quality cutting

· Cast iron base to ensure vibration free cutting

· Automatic lubrication system to spindle stroke

· 3 cycle speeds for best finish results

· Double Flute Dovetail Bit (Standard) (CANJDT75-JTCTG2T004 included

Working length min. 7.87” (200mm) to max. 59” (1500mm)

Working width min. 2.36” (60mm) to max. 16.93” (430mm)

Vertical material thickness 0.275” (7mm) to 2.36” (60mm)

Horizontal material thickness 0.394” (10mm) to 1.18” (30mm)

Fixed pitch 25mm

Spindle speed 21,500 RPM

Spindle diameter shank 0.472” (12mm)

Spindle motor 2 HP

Feed motor 2 HP

Electrics 230/3/60 = 13.6 Full Load Amps

Feed speeds (3) 16, 22, 31 cycles/min

Net weight approx 990 lbs.

Shipping weight 1210 lbs.

Shipping dimensions 55.12” x 34.65” x 55.12”
