• Large capacity up to 15 ¾” wide and 9.8” thick
• Powerful 30HP saw motor with variable speed by frequency inverter for optimum resawing results
• Hydraulic drive for feed conveyor and return conveyor with infinitely variable speed adjustment

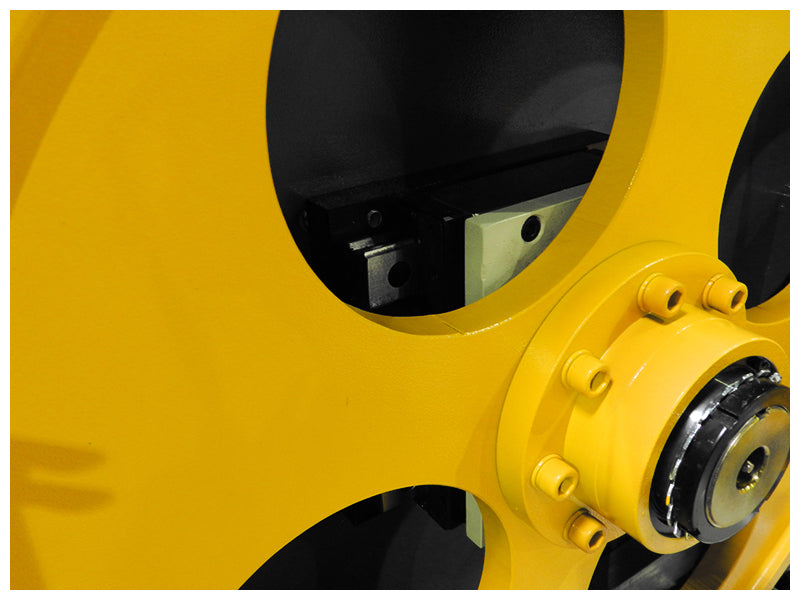

• Precision machined and dynamically balanced solid steel band wheels
• 2” wide saw blades allow for superior cutting feed rates
• Motorized thickness adjustment with digital controller for precise setting of the blade height
• Industrial welded tubular steel frame allows you to handle any job, big or small

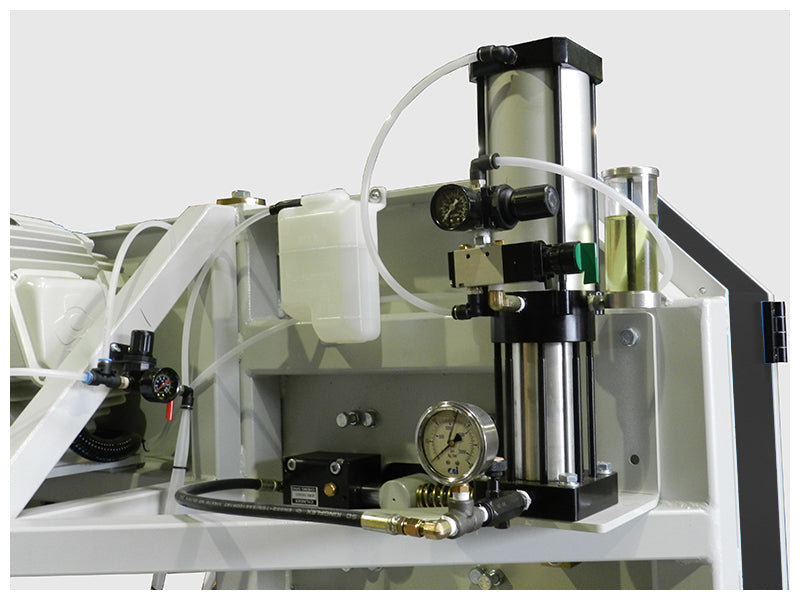

• Air over oil blade tensioning unit ensures optimum blade tension resulting in a precise cut
• Digital thickness control in both Inch & Metric for precise adjustment of the band height
• New Low Friction sandwich type saw guide system with adjustable left guide to minimize the distance between the guides for higher cutting precision
• Mist Bandsaw blade lubrication & cooling system allows for increased feed seeds, higher accuracy, and longer blade life

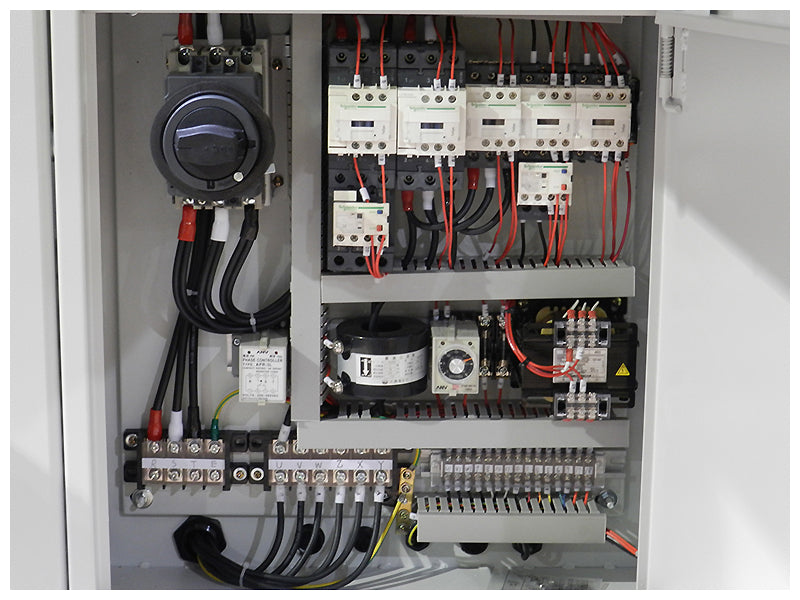

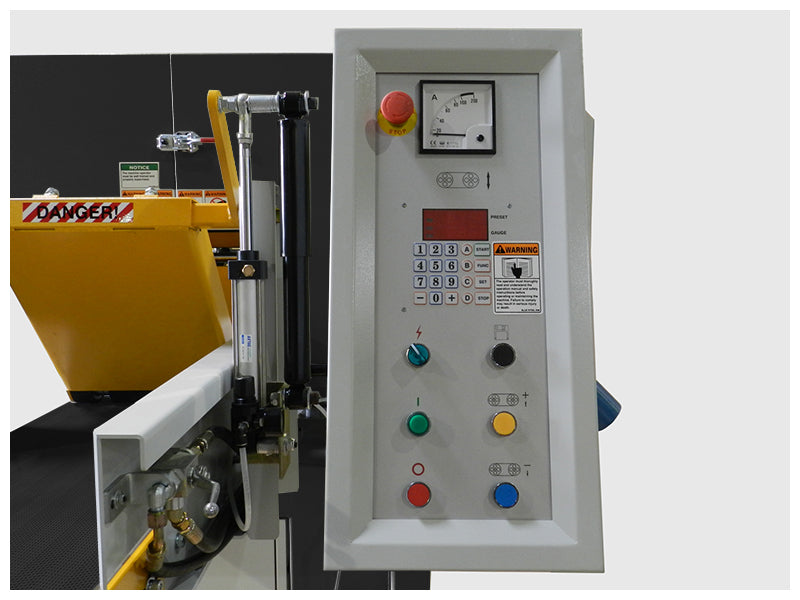

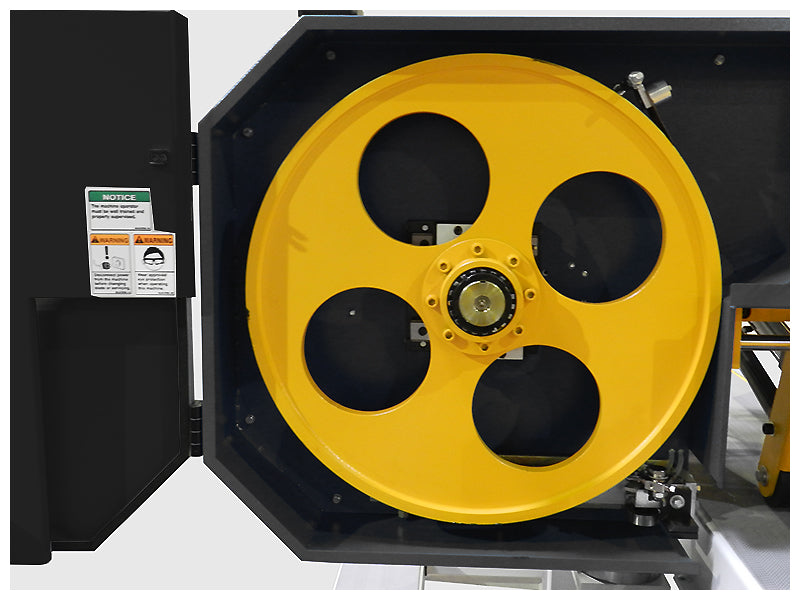

• Centralized control panel for operator convenienceSolid steel bandwheels are precision machined and dynamically balanced
• Saw assembly is raised and lowered by anti-backlash re-circulating ballscrews

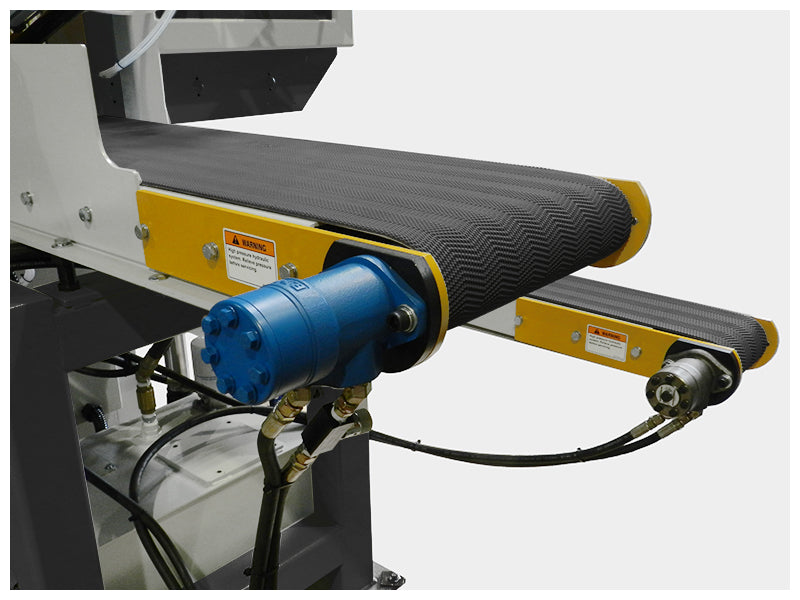

• Heavy duty hydraulic feed system with variable speed control
• Hydraulically driven return conveyor for returning material to the operator requiring additional resawing

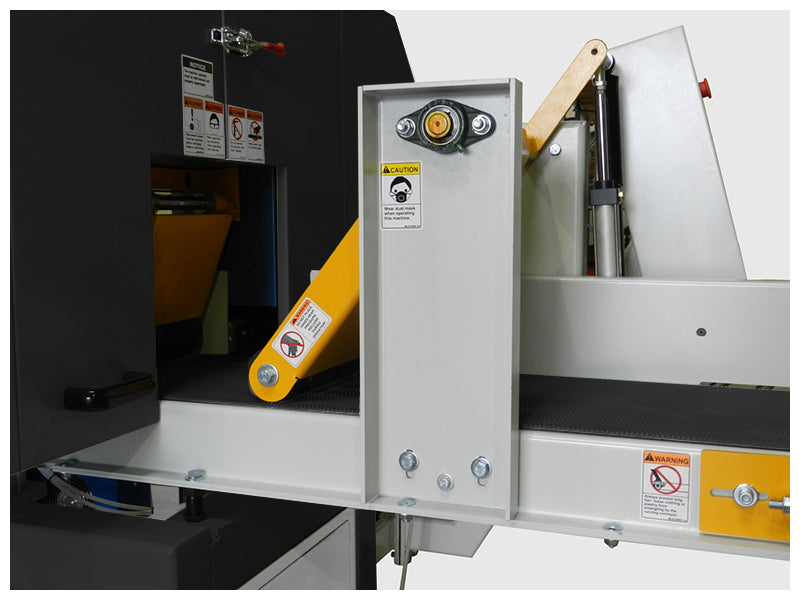

• Pneumatic top pressure roller automatically adjusts to the workpiece thickness
• An amp meter is located on the control panel for load monitoring
• Hinged blade covers allow for full access to the band wheels for convenient blade changing
• Y Delta – Low amperage starter on the saw motor
