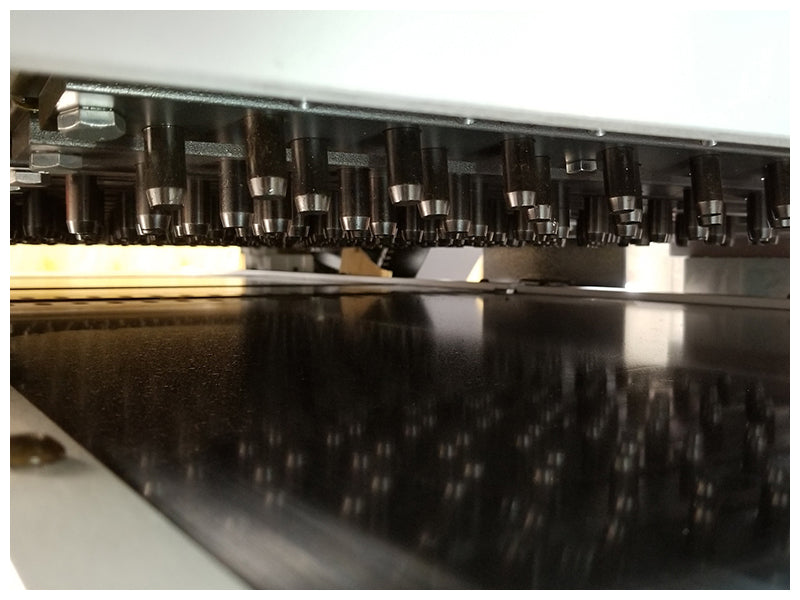

• Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
• Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
• Heavy-duty cast-iron machine body and table for vibration free cutting
• Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control

• 16″ wide x 6.7″ thick planing capacity
• Cutterheads are spiral insert type with six (6) rows of carbide inserts
• (2) driven and (1) idle bed roll for superior feeding of even difficult material

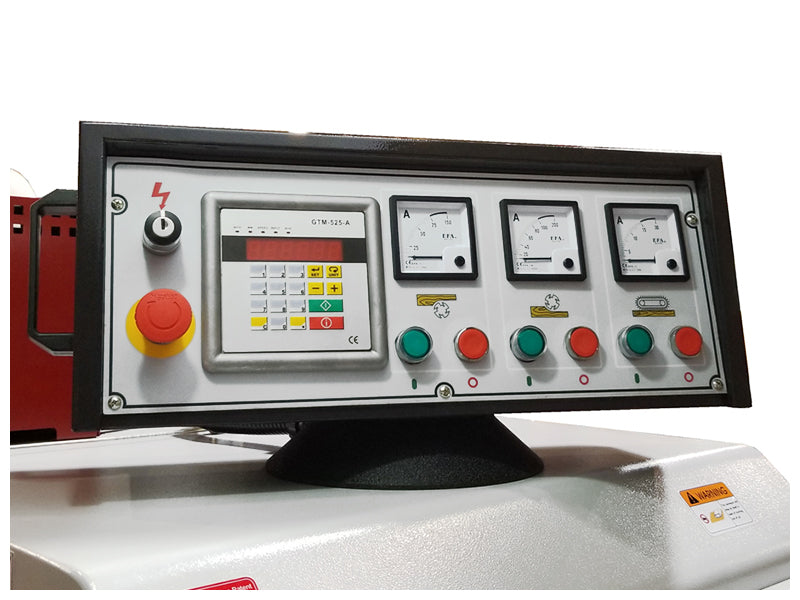

• Swiveling control panel for more ergonomic access to machine controls

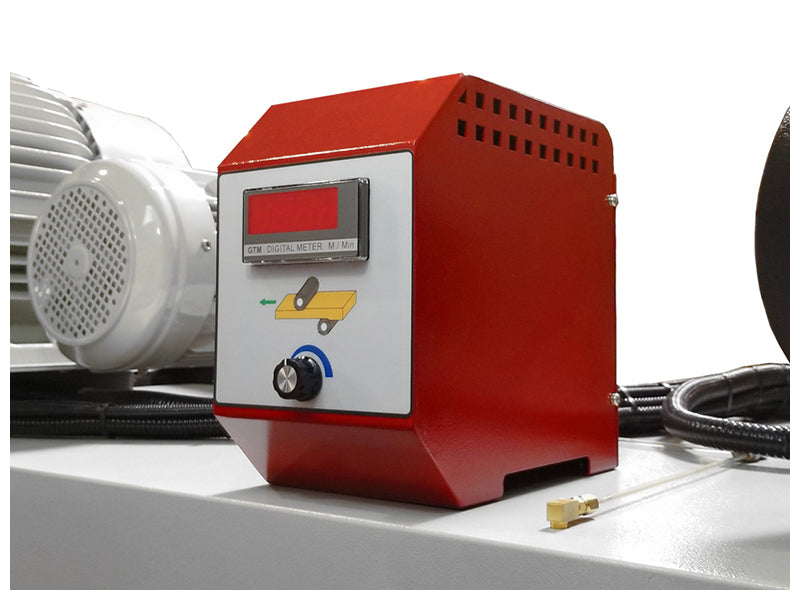

• Inverter variable speed control with feed speeds from 26 to 80 FPM
• Easy to access external handwheel adjustment of infeed bed
• Hard chromed worktable for high wear resistance

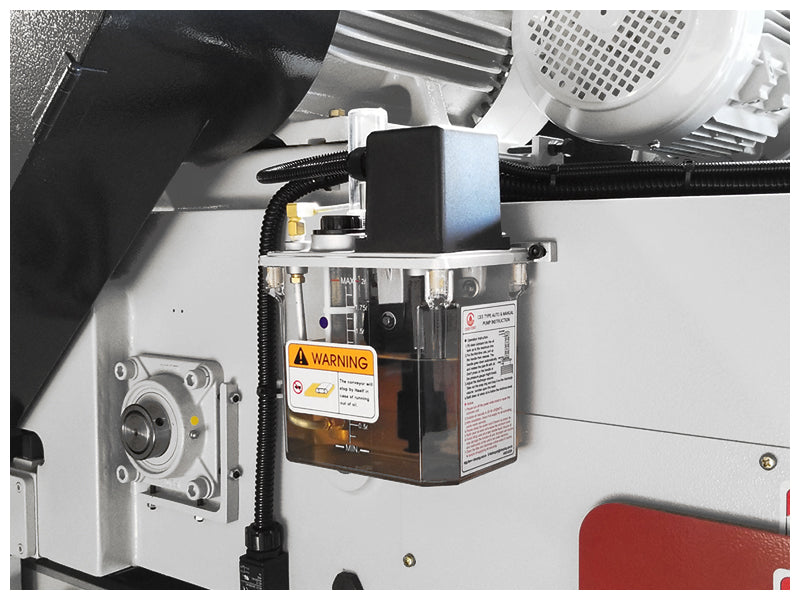

• Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways

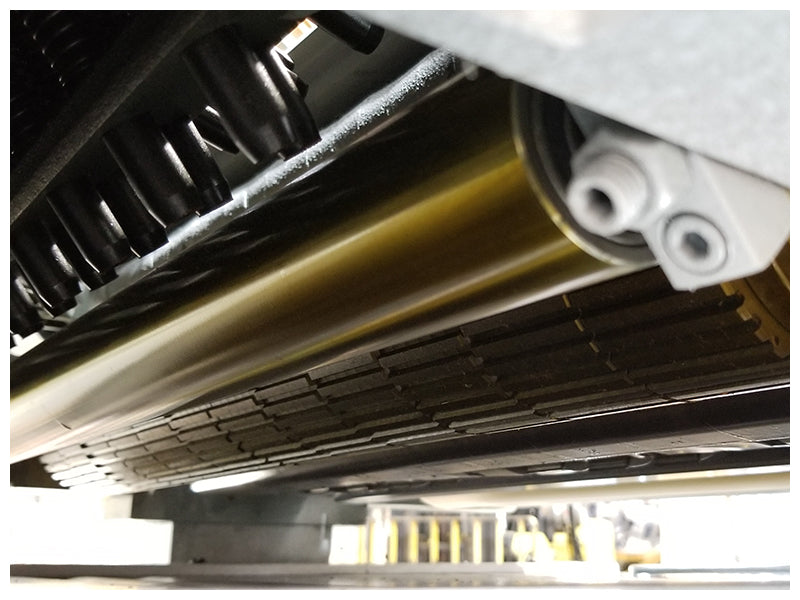

• Section chipbreaker and sectional feed roller before top cutterhead
• Rubber outfeed top roller to prevent chip marking
• Over thickness safety shut-off bar across infeed.
• Ammeter for each motor on control panel to monitor motor load
