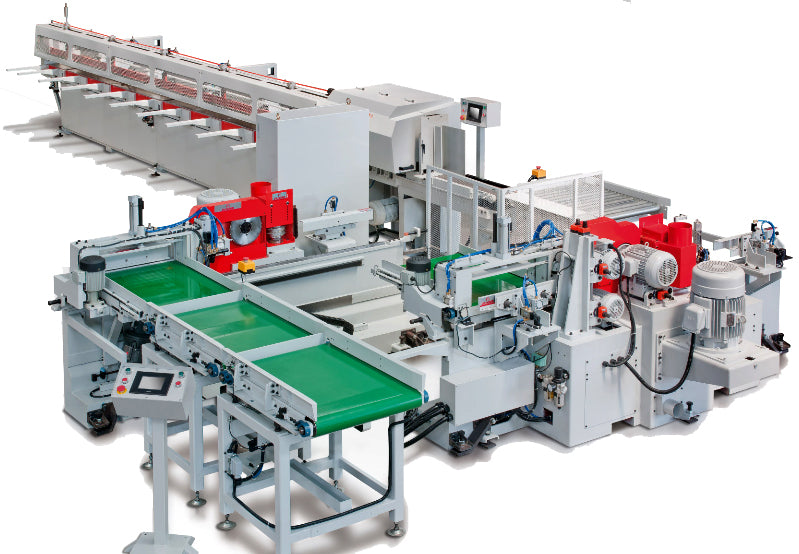

Cantek FL-08 Auto Finger Joint Line
Regular price
$0.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
FL-08 AUTO FINGER JOINT LINE INCLUDES THE FOLLOWING:
F-129-T2 AUTO INFEED TABLE
| Length | 900mm (35.4”) |
| Width | 600mm (23.6”) |
| Infeed | Table½ HP (3Ph) x 2 |

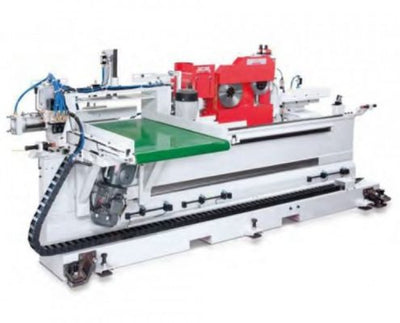

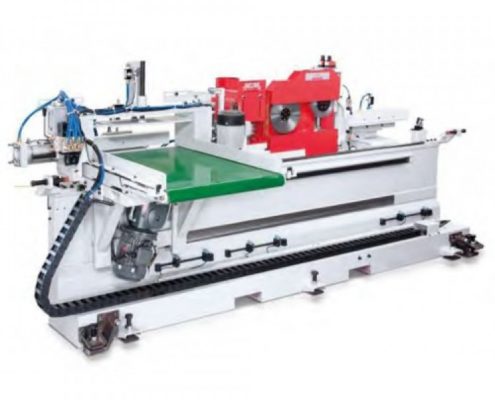

F-C07 AUTO FINGER SHAPER – LEFT
| Table Size | 600mm (23.6”) |
| Length | 150~900mm (5.9” ~ 35.4”) |
| Width | 20~60mm (0.78” ~ 2.36”) |
| Thickness | 20~160mm (0.78” ~ 6.3”) |
SPECIFICATIONS:
- With 20HP (3Ph) for Main Spindle
- With 5HP (3Ph) for Trimming Saw
- With 2HP (3Ph) for Bottom Scoring Saw
- With 1/2HP (3Ph) for Feeding Conveyor

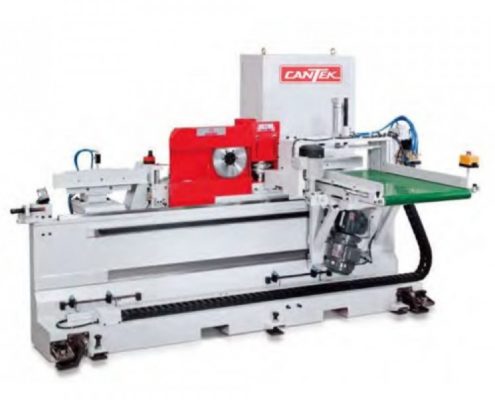

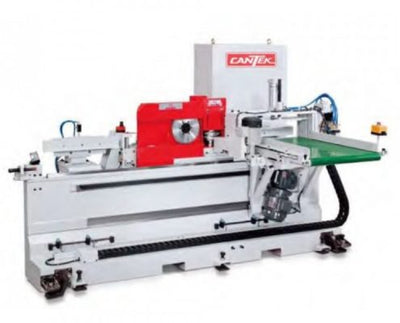

F-C08 AUTO FINGER SHAPER – RIGHT
| Table Size | 600mm (23.6”) |
| Length | 150~900mm (5.9” ~ 35.4”) |
| Width | 20~60mm (0.78” ~ 2.36”) |
| Thickness | 20~160mm (0.78” ~ 6.3”) |
SPECIFICATIONS:
- With 20HP (3Ph) for Main Spindle
- With 5HP (3Ph) for Trimming Saw
- With Top and Bottom Scoring Saw, 2HP (3Ph) x 2
- With 1/2HP (3Ph) for Feeding Conveyor
- With Gluing System – Roller Type

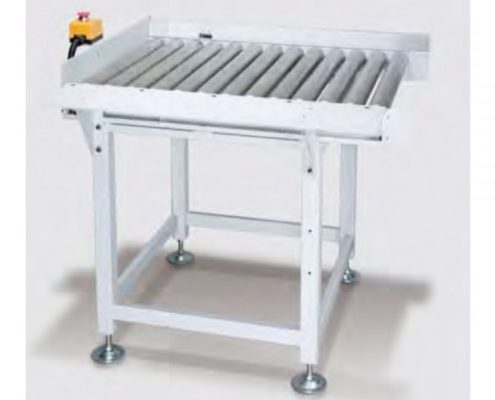

F-D16 TRANSFER ROLLER
| Length | 900mm (35.4”) |
| Width | 600mm (23.6”) |

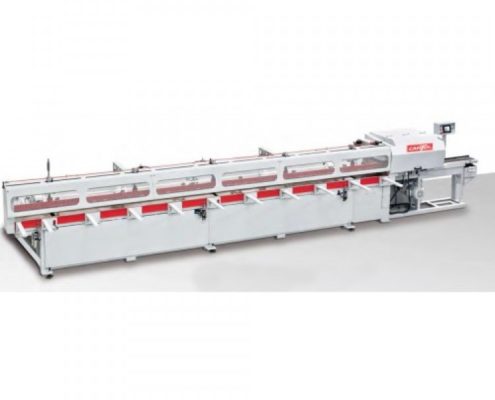

F-A05-6 TWO STAGE AUTO FINGER ASSEMBLER
| Length | 6000mm (236”) |
| Width | 20~160mm (0.78” ~ 6.3”) |
| Thickness | 20~60mm (0.78” ~ 2.36”) |
SPECIFICATIONS:
- With 2HP (3Ph) for Feeding Table
- With 5HP (3Ph) for Sizing Saw
- With 5HP (3Ph) for Oil Pump
- With Saw Blade
- Speed – Max. 4~5 Piece/Min.
