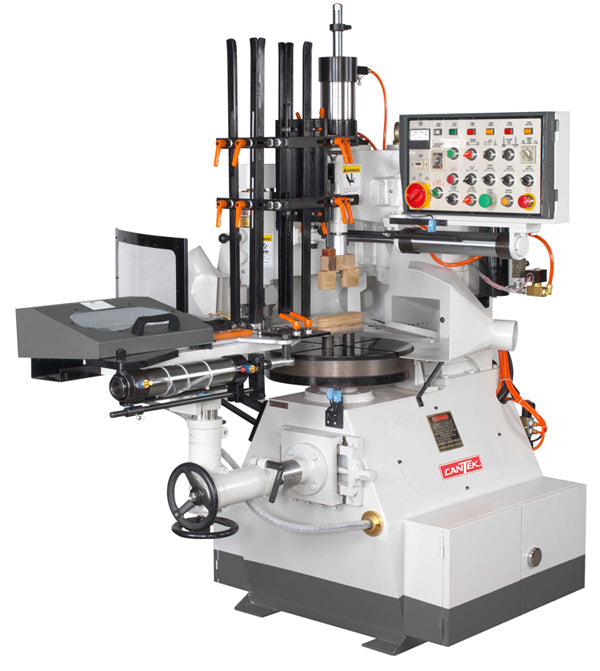

Cantek DT-1128A Automatic Copy Shaper with Feeding System
Regular price
$0.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
| Range of cutter diameter | 1” to 6” (changeable) |
| Table diameter | 18” |
| Table speed | 1.5 ~ 4.0 RPM (4 speeds) |
| Spindle diameter | 30 mm |
| Spindle speed | 9000 RPM |
| Cutter size | 100 mm |
| Spindle height | 4” |
| Follower roller diameter | 100 mm x 1 |
| Table drive motor | 1 hp |
| Spindle motor | 5 HP x 1 |
| Working speed | 5~6 times/minutes |
| Net weight | 1,000 kgs |
| Gross weight | 1,100 kgs |
| Packing size | 230” x 160” x 210 cm |
