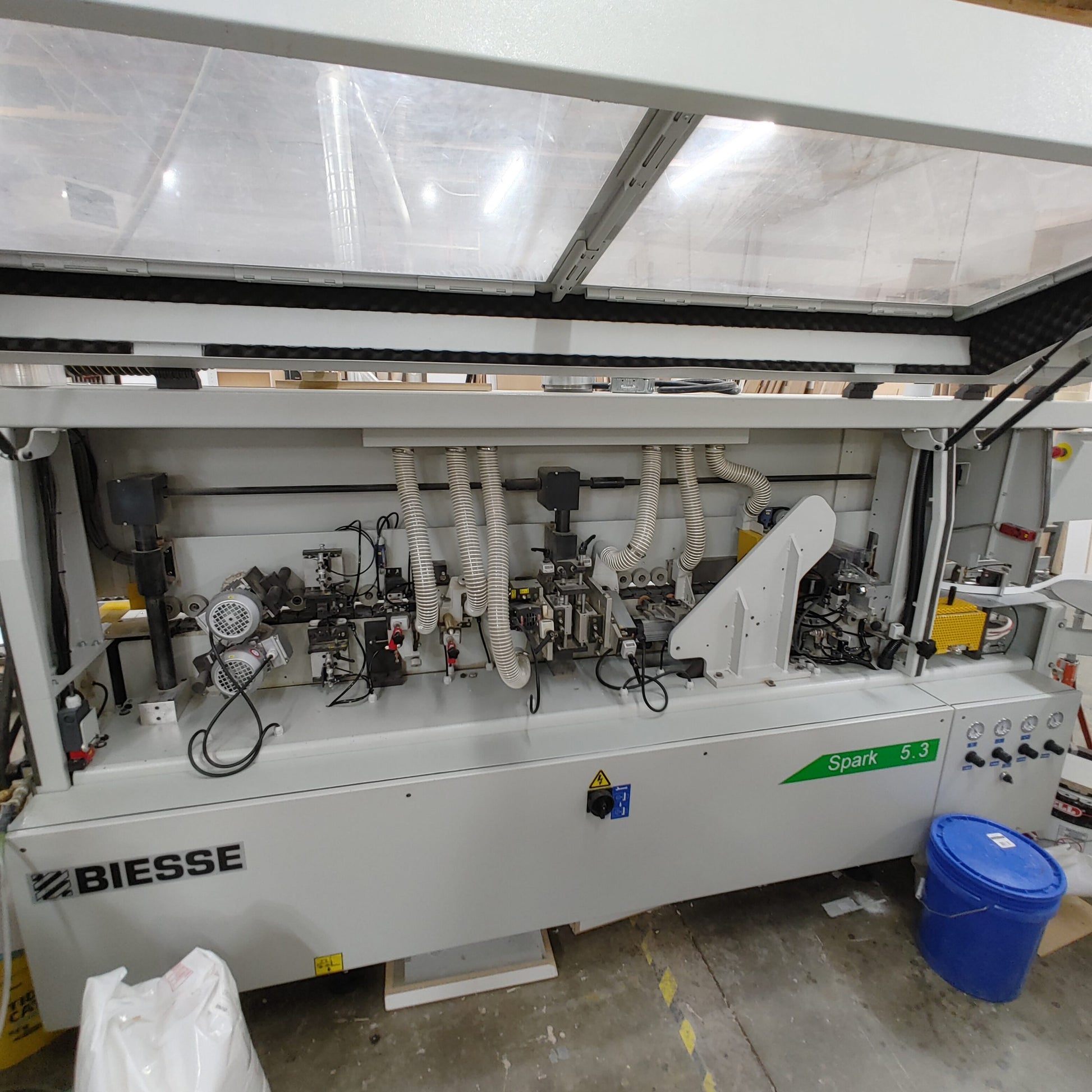

2017 Biesse Spark 5.3 Edgebander

Out of stock
Regular price $25,000.00 USD

Interested in this Machine?

Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

Contact us

Product Description: The Biesse Spark 5.3 Series Is The New Range Of Compact, Automatic Edgebanders Perfect For Small Shops. Featuring Rapid And Reliable Performance, The Spark Has A Solid, Heavy-Duty Structure To Ensure The Very Highest Levels Of Consistency And Repeatability. The New Spark Is The Affordable, Profitable Solution Engineered To Take Your Production To The Next Level And Improve Your Company's Bottom Line.

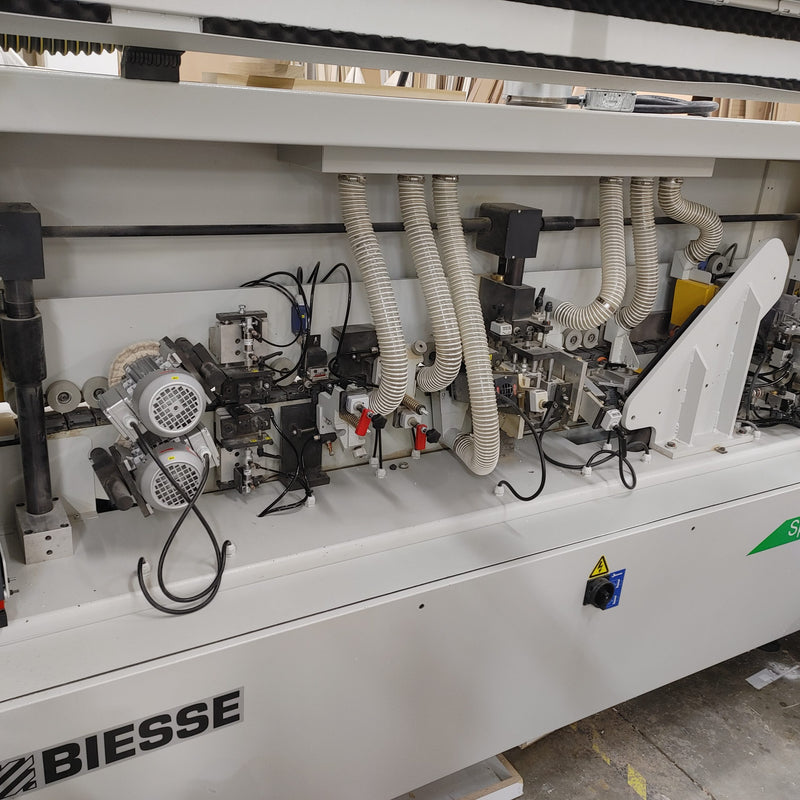

End Trimming Unit: To Carry Out The Trimming Of Edge Excess At The Front And Rear Portion Of The Panel With 2 Tilting Motors HF 0.5 Hp (0.37 KW)

Top And Bottom Trimming Unit: To Carry Out Top And Bottom Fine Trimming Of The Edge With 2 Tilting Motors HF 0.75 Hp (0.55 KW). Micrometric Adjustment With Numerical Read-Out.

Scraping Unit: To Scrape The Edge Of The Tape Using Knife Scraping. Micrometric Adjustment With Digital Readout.

Glue Scraping Unit: Top And Bottom Glue Scraper

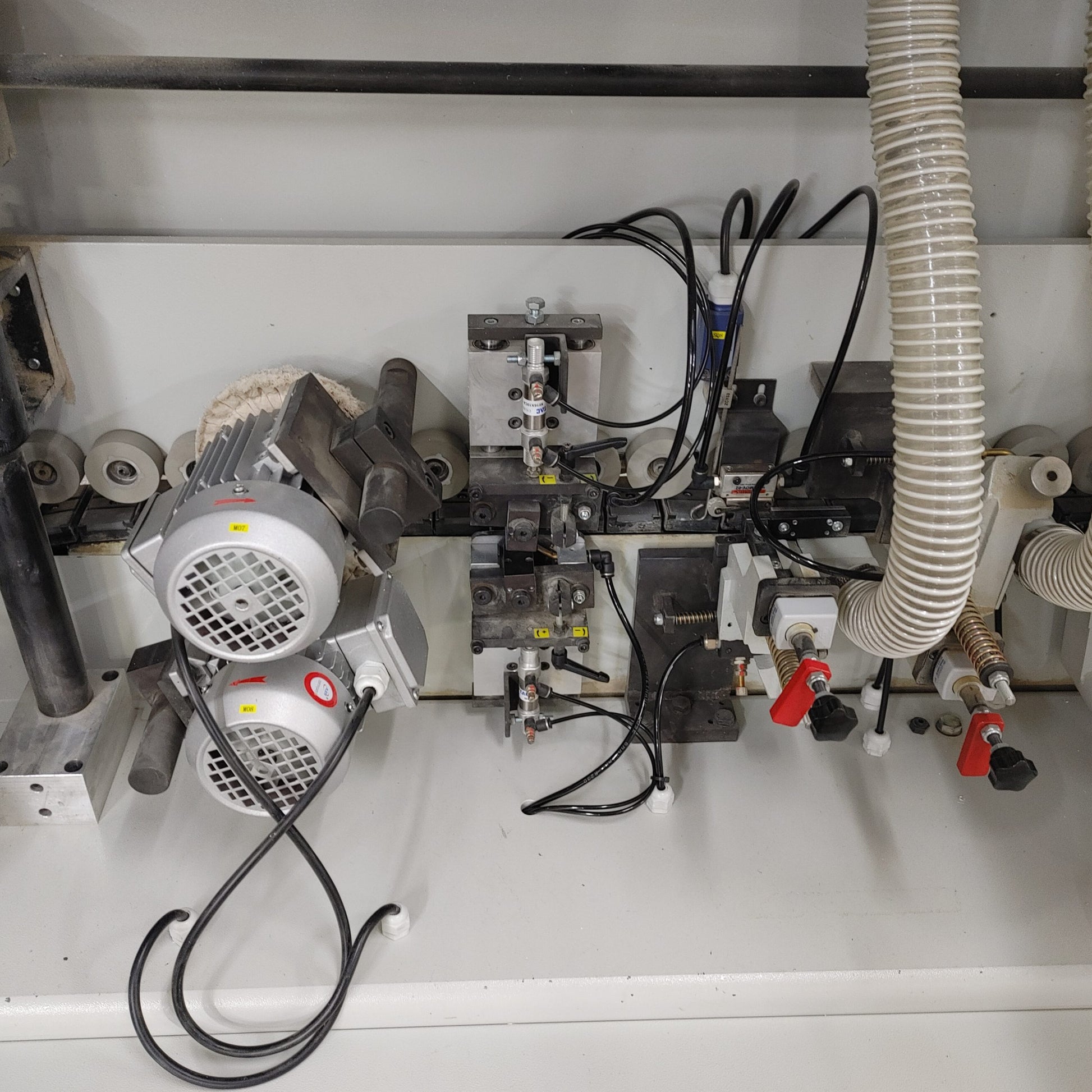

Brushing Unit: To Carry Out The Cleaning And Polishing Of The Applied Edge Using Cloth Disc Brushes With 2 Motors 0.25 Hp (0.18 KW) With Cloth Discs Dia. 3.8" / 100 Mm.

This Machine Is Equipped With:

Easy To Use Controller
Top Pressure Beam With Manual Adjustment Through Numerical Read-Out Equipped With Rubber Wheels
Wheels To Move The Machine; Rolls Supporting Device Dia. 27.6"- 700 Mm; Lateral Support With Conveyor Roller For Wide Panels
2 Liter Glue Tank In Teflon With Quick Heating System. Glue Tank In Teflon With Electronic Control Of The Temperature At 200°-130° Celsius
Automatic Glue Temperature Lowering When Machine Has Been Idle For A Set Period Of Time From 200° To 130° Celsius
Pneumatic Guillotine Knife For Automatic Edge Cutting With A Max Thickness Of 3mm With Automatic "Kickback" Of The Edge
Adjustable Edge Pressure Unit Complete With 2 Rollers: 1st Motorized Roller With Separate Adjustable Pressure System; 2nd Idle Roller With Separate Adjustable Pressure System
End Trimming Unit - 2 Tilting Motors HF 0.5 Hp (0.37 KW)
Edge Trimming Unit - 2 Tilting Motors HF 0.75 Hp (0.55 KW) And Micrometric Adjustment With Numerical Read-Out
Cutters With 3mm Radius With 4 Knives
Edge Scraping Unit With Numerical Read-Out
Glue Scraping Unit (Top And Bottom)
Brushing Unit - 2 Motors 0.25 Hp (0.18 KW) With Cloth Discs Dia. 3.9" I 100 Mm
1 Suction Hood Dia. 2" I 50 Mm; 1 Suction Hood Dia. 3.9" / 100 Mm
Installed Power: 6.1 KW
Weight: 2150 Lb I 980 Kg
Multi-Tap Transformer
Electrics: 220V, 480V, 575V, 3 Phase 60Hz
CE Standards
Binding Data Are In Metric
Technical Common Data:

Min Width Of The Panel - 3.5"/90 Mm
Min Length Of The Panel - 5.5"/140 Mm
Max Thickness Of The Panel - 1.6"/40 Mm
Min Thickness Of The Panel - 0.39"/10 Mm
Edge Dimensions In Rolls And Strips - 0.02 - 0.12"/0.4 - 3mm*
Feed Speed - 39 Ft/Min / 12m/Min
Air Pressure - 6 Bar
* 3 Mm Is Limited To A 72 Mm Cross Section (3mm Thickness X 24 Mm Tape Height)
Advantages:

Compact Design
User Friendly Contol Panel
Heavy Duty Industrial Frame
Safe Machine Environment
Large Glue Reservoir
Precision Glue Temperature Control
Easy Operator Adjustments

Machine Location State:

Machine Location City:

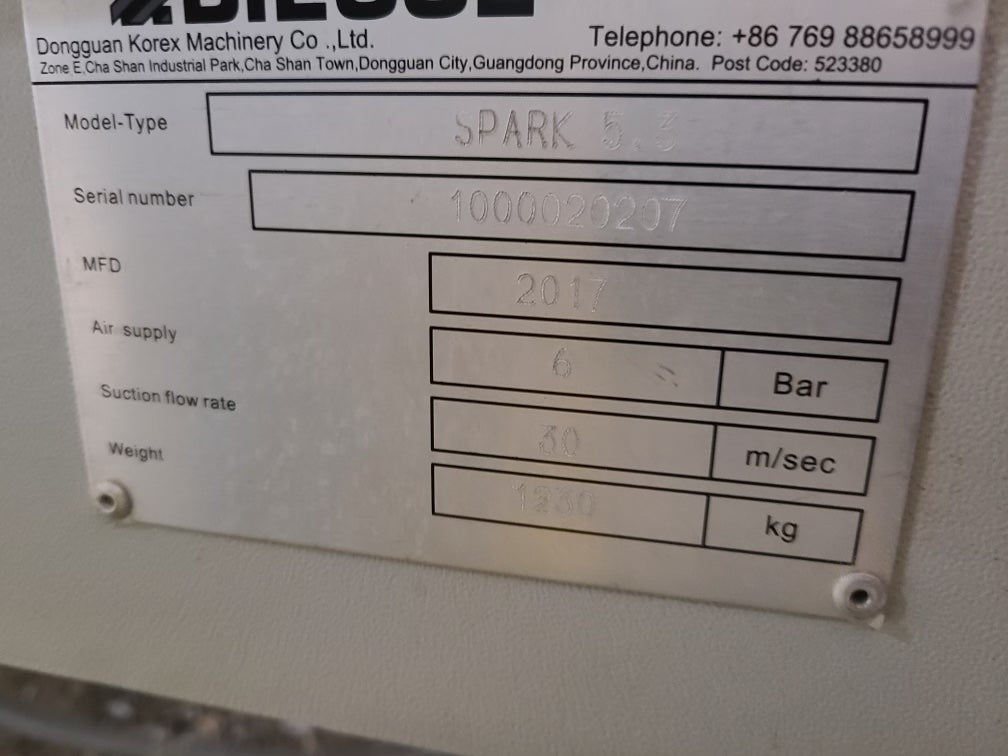

Year: 2017

Make: Biesse

Model: Spark 5.3

Serial No:

Phase/Voltage:

Condition: Excellent

Any Known Issues:

In Production:

Software Transfer:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight: 2712 Pounds

Shipping Brackets Available:
