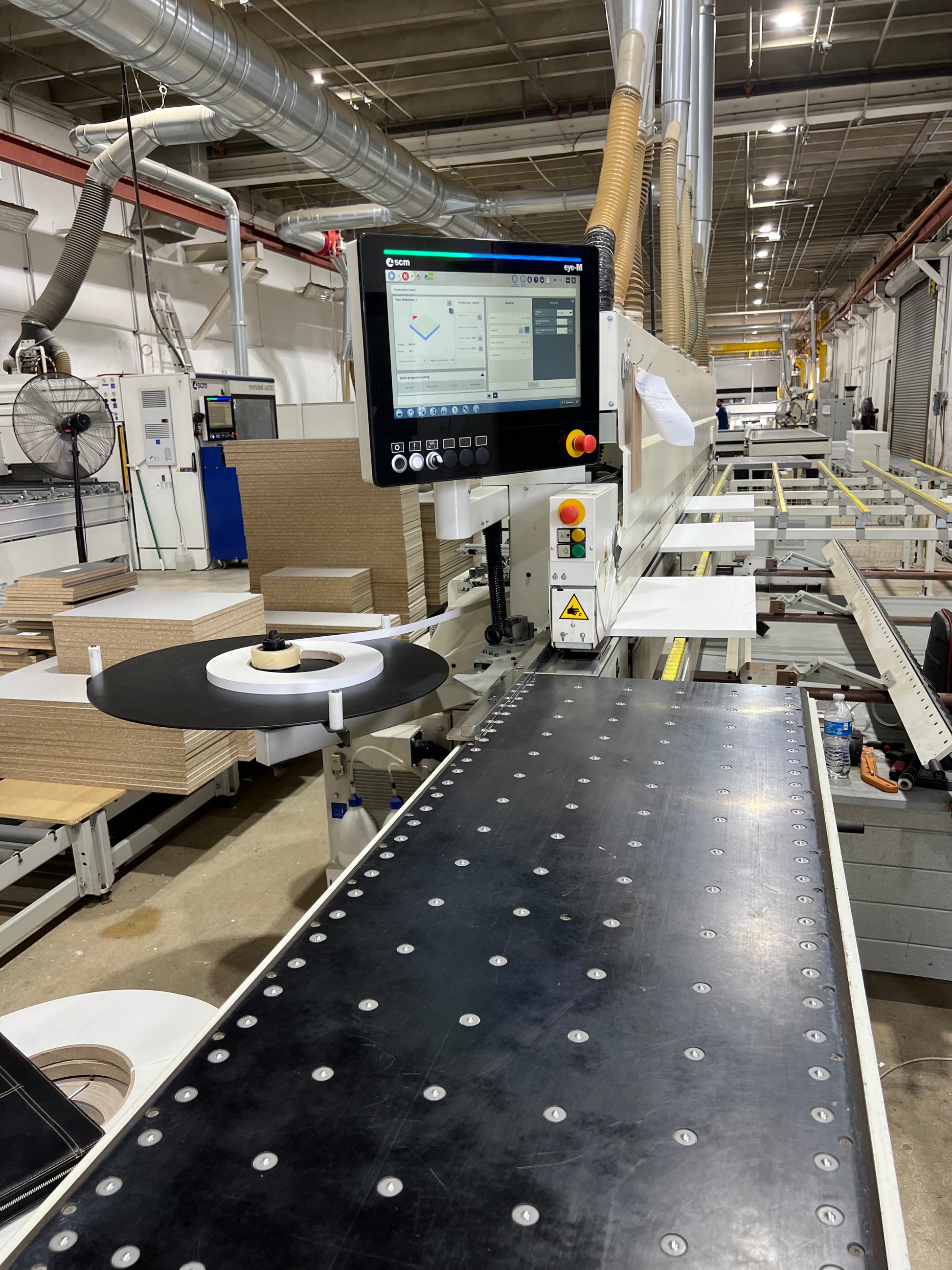

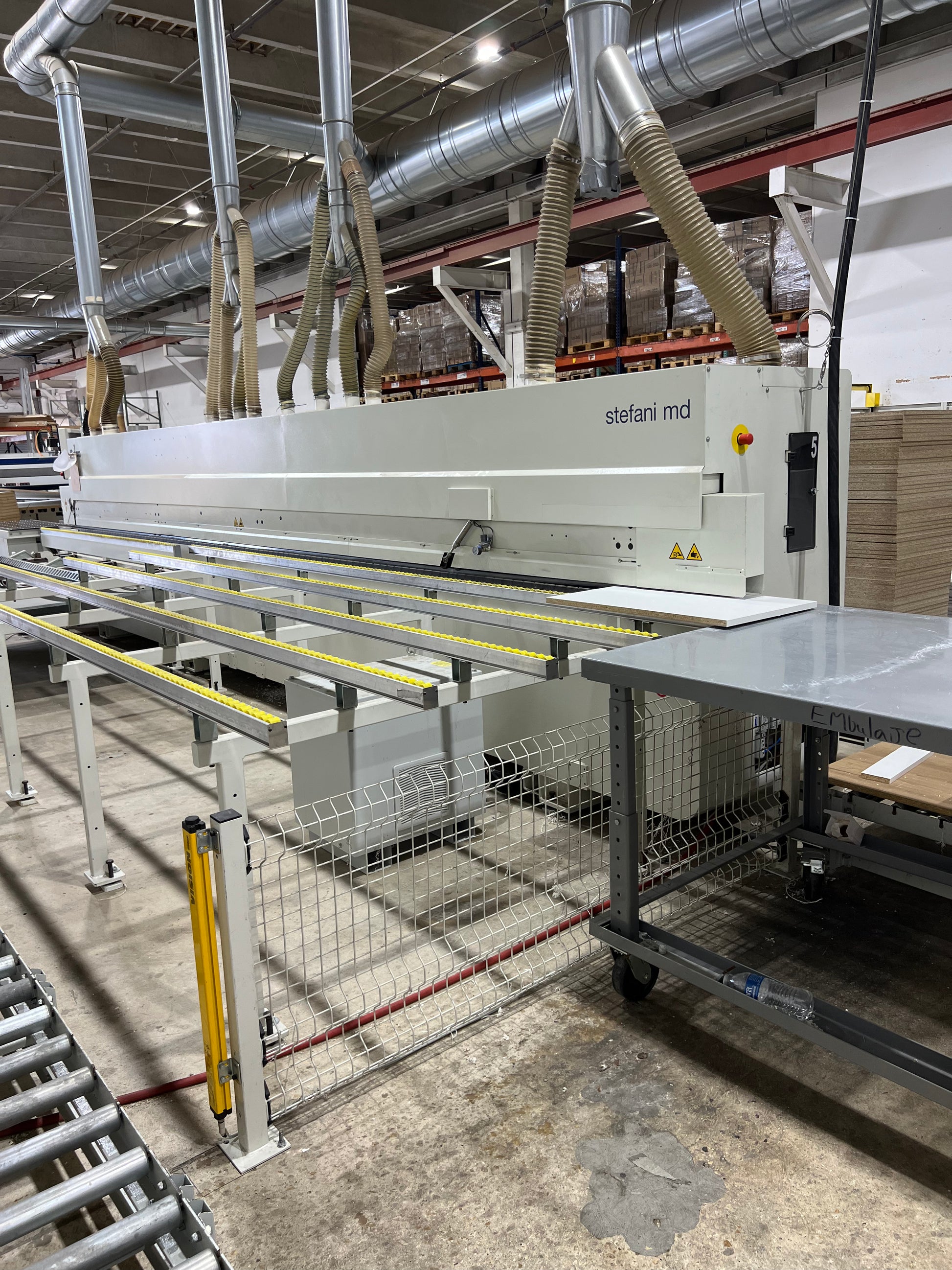

2022 Stefani MDR Automatic Edgebander - Florida

In stock
Regular price $185,000.00 USD

Interested in this Machine?

Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

Contact us



Great used SCM Stefani Edgebander for Sale! Make us an offer!

678-925-3556

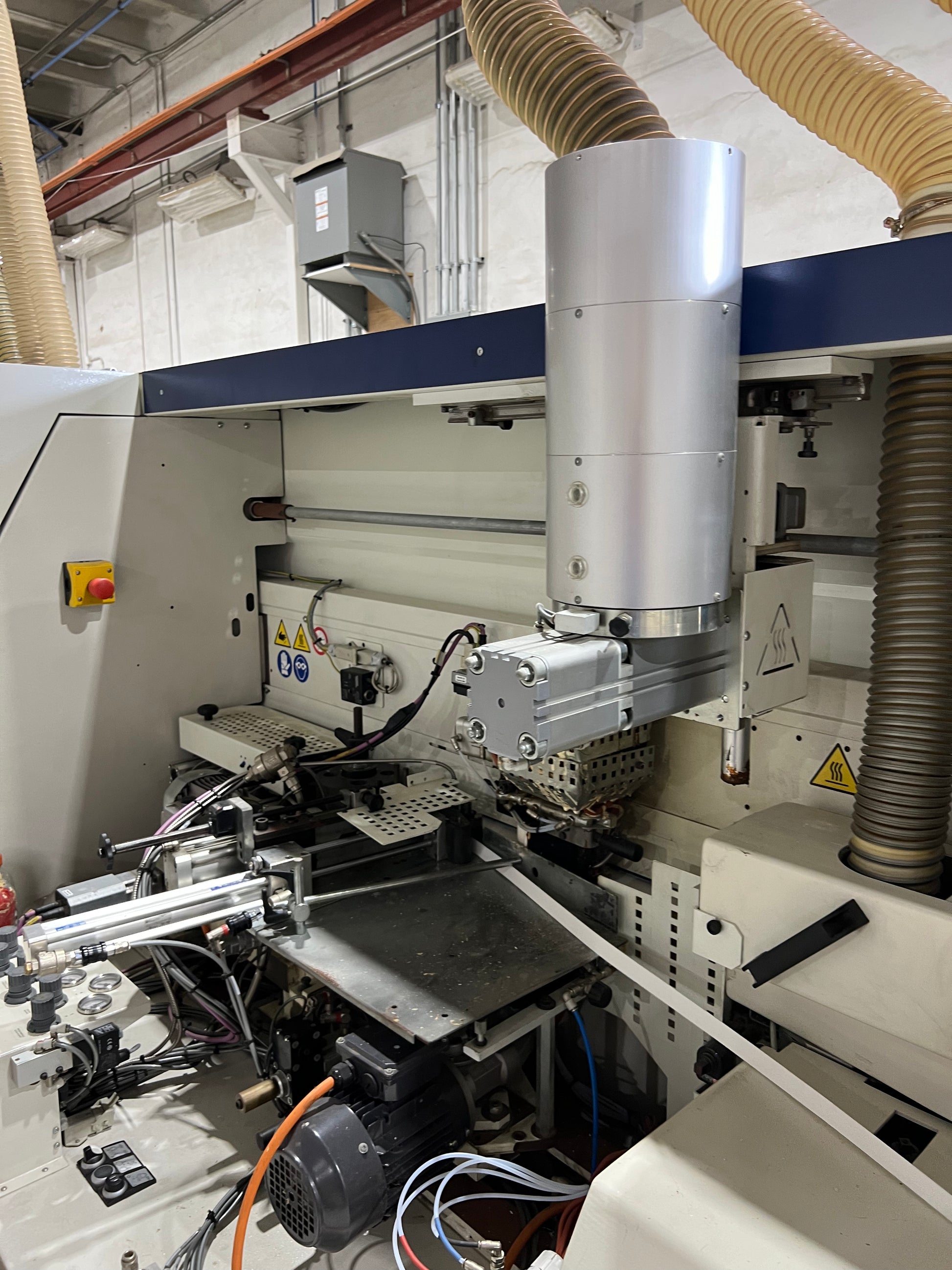

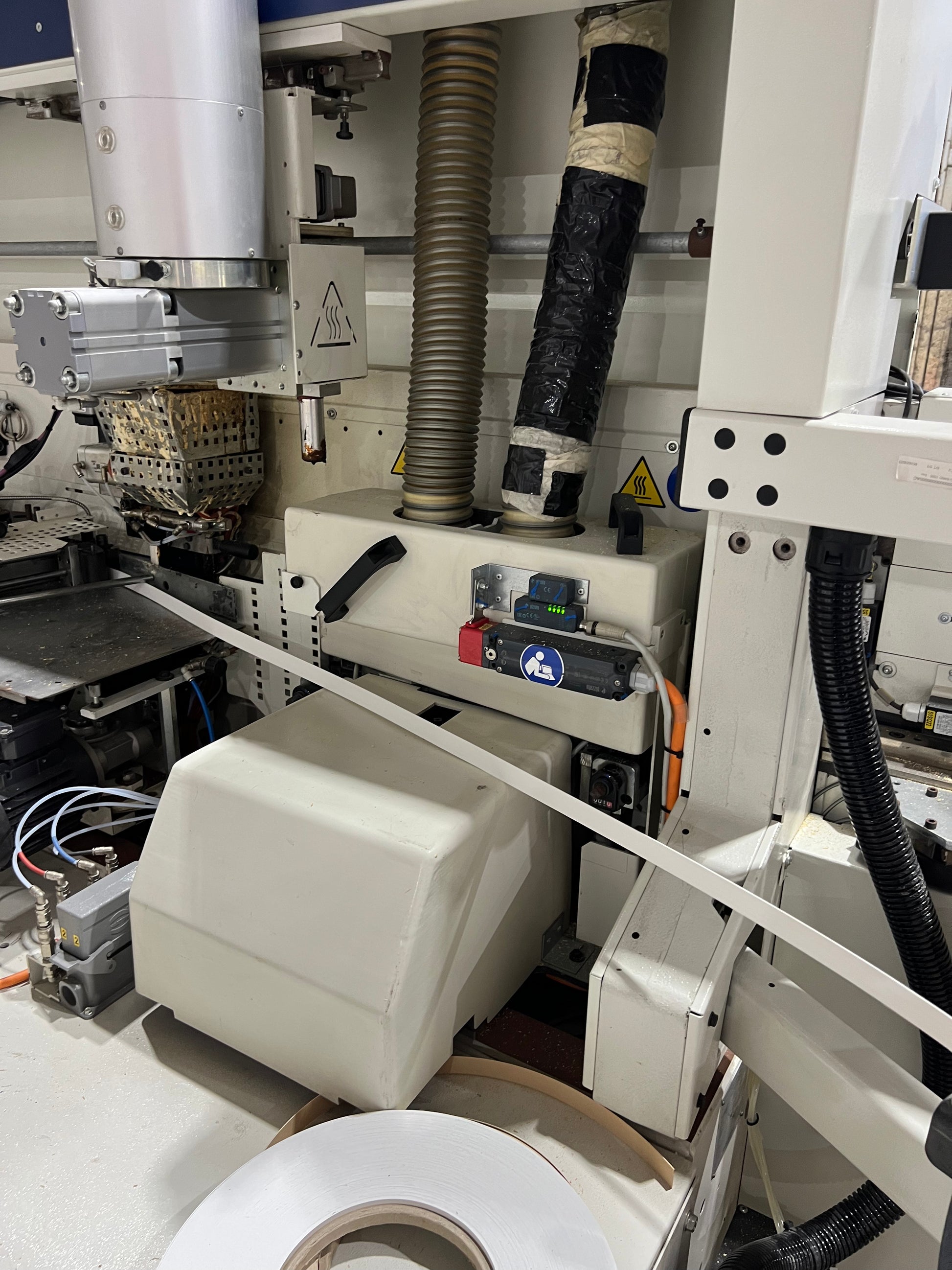

Technical Specifications Glue Pot Unit:

Heating Time

Approx. 8-10 min.

Pot/Hopper Capacity

1.1 lbs. / 8.8 lbs.

Pre-milling Station:

Horsepower

5.25 HP ea.

RPM

12,000 RPM

Max. Stock Removal

90mm²

Diameter/Bore/Height

100mm/30mm/49mm

End Cutting Trimming Station:

Horsepower

.75 HP ea.

RPM

12,000 RPM

Tilting

0-15 degrees

Blade Diameter/Bore

100mm/32mm

Flush Edge Trimming Unit:

Horsepower

1.5 HP ea.

RPM

12,000 RPM

Cutting Tools

70x20x16mm

Tiltable Edge Trimming Unit:

Horsepower

1.5 HP ea.

RPM

12,000 RPM

Tilting

0-25 degrees

Cutting Tools

70x20x16mm

3mm radius knives

Corner Rounding Unit::

Horsepower

.80 HP ea.

RPM

12,000 RPM

Cutting Tools

3mm / 1mm

Scraping Unit:

Knife Radius

1mm and 3mm inserts

Buffing Unit::

Horsepower

.25 HP

RPM

3,000 RPM

Diameter/Bore

152mm/17mm

Feed Motor Horsepower

2.5 HP

Feed Speed

40-72 FPM

Frequency Converter

200 Hz

Pneumatic Operating Pressure

90 PSI

Machine Weight:

9,105lbs.

Electrical:

130 amps @ 230v three phase

Dust:

3,500 cfm

Dimensions (LxWxH):

262” x 65” x 62”



*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

Product Description: Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 15mm.
Machine Base
The machine base is a rigid, ribbed steel structure and is designed to provide maximum support for the working units. The ribs provide stability and, at the same time, provide openings in the base to facilitate removal of the chips/dust.
Top pressure beam is fitted with a twin-profile V-belt for even pressure & precise holding of even small work pieces.
Capacities and Speed
 Edgebanding thickness: .4mm - 15mm (.016-5/8”)
 Guillotine capacity: 3mm
 Feed speed: 40-72 ft/min.
 Panel height: 3/8” min – 2 3/8” max
 Minimum panel length: 5 1/2”
 Minimum panel width: 2”
 Minimum distance between panels: 20”

Machine Location State: Florida

Machine Location City: Miami

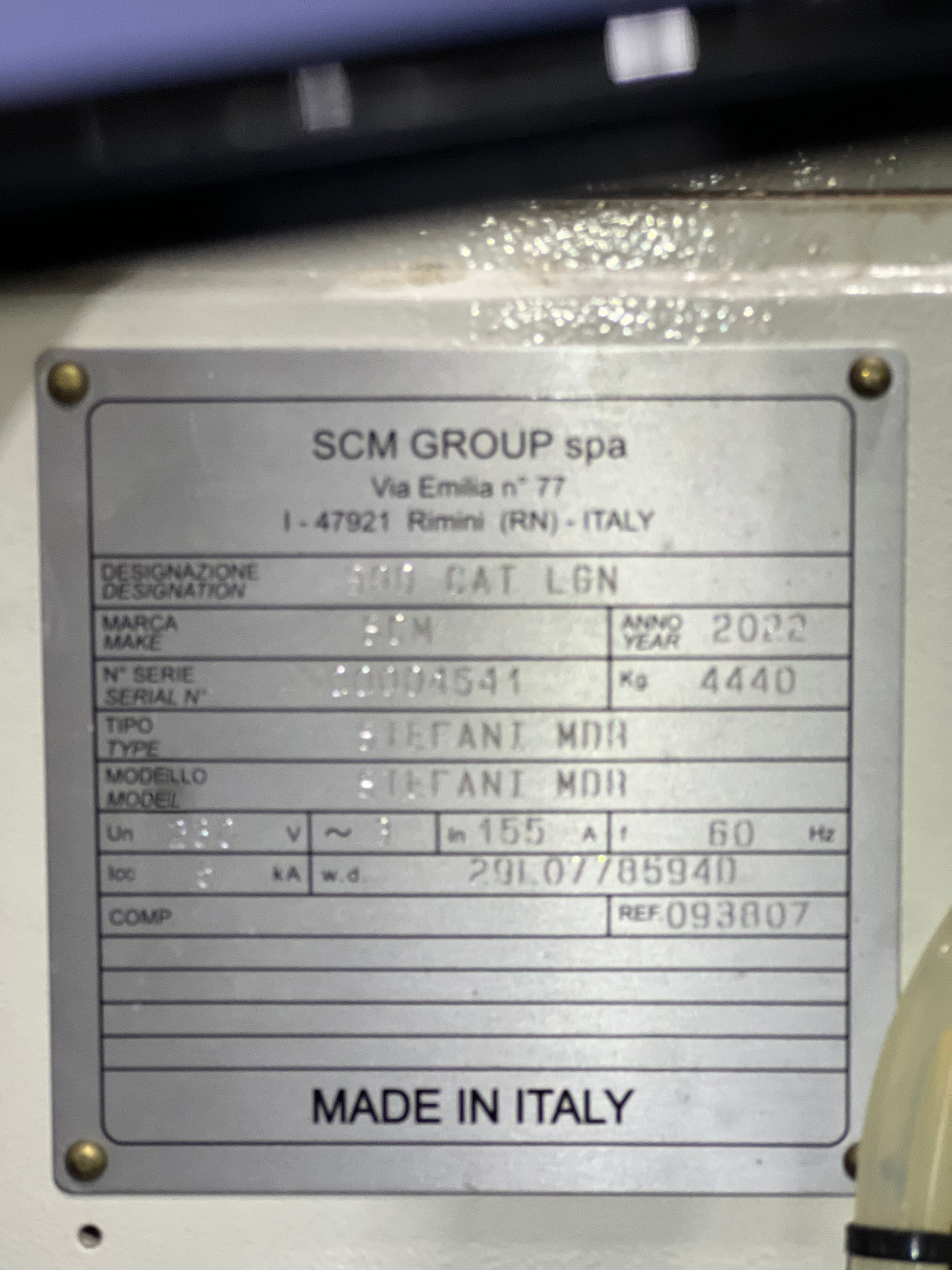

Year: 2022

Make: SCM Stefani

Model: MDR

Serial No: 4541

Phase/Voltage: 3 phase 230 v 155 Amps full load 60hz

Condition: Excellent- Like New

Any Known Issues: No

In Production: Yes

Software Transfer:

Access to Forklift for Loading: Yes

Loading Fee: Included

Shipping Dimensions: 262” x 65” x 62”

Shipping Weight: 9000

Shipping Brackets Available:
