Like New Condition

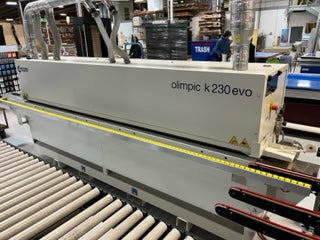

Used 2022 SCM Edgebander

Model Olimpic K230 ERT EVO

**** SINGLE PHASE****

K 230ERT EVO STATIONS:

Premill, End Trim, T/B Trim, Corner Rounding (1), Profile Scrape, Glue Scrape, Buff (single phase)

Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 3mm.

Machine Base

The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy.

Pressure Beam

All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has digital height indicators and a double row of pressure rollers with steel bearings.

Capacities and Speed

• Edgebanding thickness: .4mm - 3mm (.016-1/8”)

• Guillotine capacity: 3.0mm

• Feed speed: 30 ft/min.

• Panel height: 3/8” min – 1 15/16” max

• Minimum panel length: 5 1/2”

• Minimum panel width: 2 3/8”

• Minimum distance between panels: 22”

Glue Station

Teflon coated glue pot to facilitate glue changeover. Warm up time is approximately eight to ten minutes.  The unit is also equipped with a quick disconnect plug for changing from one pot to another.

Pressure Section And Automatic Strip Magazine

There are a total of two spring loaded pressure rollers for pressing the banding to the work piece edge.  The first roller is Teflon coated. Positioning of the pressure section is determined by a mechanical digital readout. The machine comes equipped with an automatic strip magazine for feeding wood and laminate strips.

Control Panel

The K 230E is equipped with an Orion 1 Plus controller, fixed, located at the infeed of the machine. It is capable of operating all the work units via soft touch buttons, it pneumatically tilt’s the end trim unit from the control panel, it eliminates the use of micro switches, as well as control the temperature of the glue. It is tilted slightly upward for a more ergonomically friendly position for the operator.

End Trimming Station

This unit is composed of two independent .25 hp motors mounted on THK guides. End trim utilizes a draw cut system for reduced blade projection on thick panels. The unit comes standard with pneumatic positioning of the unit from the control panel with two preset positions. The unit is also equipped with the “radius” edge feature that rounds over the vertical edge on the corners of a 3mm panel.

Edge Trimming Station

This unit is composed of two independent .5 hp motors operating at 12,000 rpm. The unit is equipped with a combination cutter that allows the operator to manually go from solid wood, to thin material, to a radius, all with the same cutter. All adjustments are carried out with mechanical digital readouts. The unit has top and bottom copy wheels and side copy shoes. The motors have quick release plugs to facilitate tooling changes.

Profile Scraping Unit

Scraping station designed to remove knife marks from thick PVC.  The unit is equipped with top and bottom copy wheel and side copy wheels, adjustments are made via mechanical digital readouts.  The unit is positioned manually. The unit is also equipped with dust extraction and a collection bin.

Buffing Unit

The buffing unit has two .25 hp motors. It can also be tilted up to 12 degrees to provide a softer, more refined edge finish.

Acoustical Safety Enclosure

All working units are enclosed under an acoustical safety hood to reduce noise and prevent accidents.  The hood has a safety microswitch which prevents the machine from operating when the hood is open.

Centralized Dust Extraction

Two 2” dust ports and one 3” dust port for extraction.

Technical Specifications

Why is the owner selling this machine? Needs higher production capacity.

No Known Issues - in Excellent Like New Condition

Located in Ohio

Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase. MACHINE SOLD AS IS WHERE IS WITH NO IMPLIED WARRANTY.

Product Description: 2022 SCM Olimpic K230 EVO ERT Edgebander

Machine Location State: Ohio

Machine Location City: West Chester Township

Year: 2022

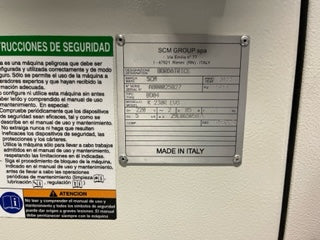

Make: SCM

Model: Olimpic K230 EVO ERT

Serial No:

Phase/Voltage:

Condition: Excellent

Any Known Issues: No

In Production: Yes

Software Transfer:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions: 10.5 ft x 3.5ft x 4.8 ft

Shipping Weight: 2357 lbs approx.

Shipping Brackets Available:
