With Hand Winch Lifting Platform and Self Sealing Drums!

Size:

~3’ x 9’ x 9’ Tall

Filter:

~18 filters totaling 208 ft.² of 16oz polyester needlefelt with singed inside.

 Hardware:

~Reverse incline material handling impeller

~10 gauge (.130”) construction

~Pneumatic vibrational pack

~10 HP Siemens Cast Iron Motor

~10” Diameter Filters

Specs:

 ~5000cfm @ 6” Static Pressure with 15” duct (This is the size of our inlet, no reducer needed.)

 ~4500cfm @ 6.5” Static Pressure with 14” reduction inlet. (This is recommended trunk size.)

 ~3200cfm @ 8.5” Static Pressure with 12” reduction inlet.

Additional Fees:

~Motor Starter *NEED VOLTAGE*: $475.00

~Inlet Adapter to 12” or 14”: $250.00

Located in Michigan

*1 Year Warranty from Manufacturer*

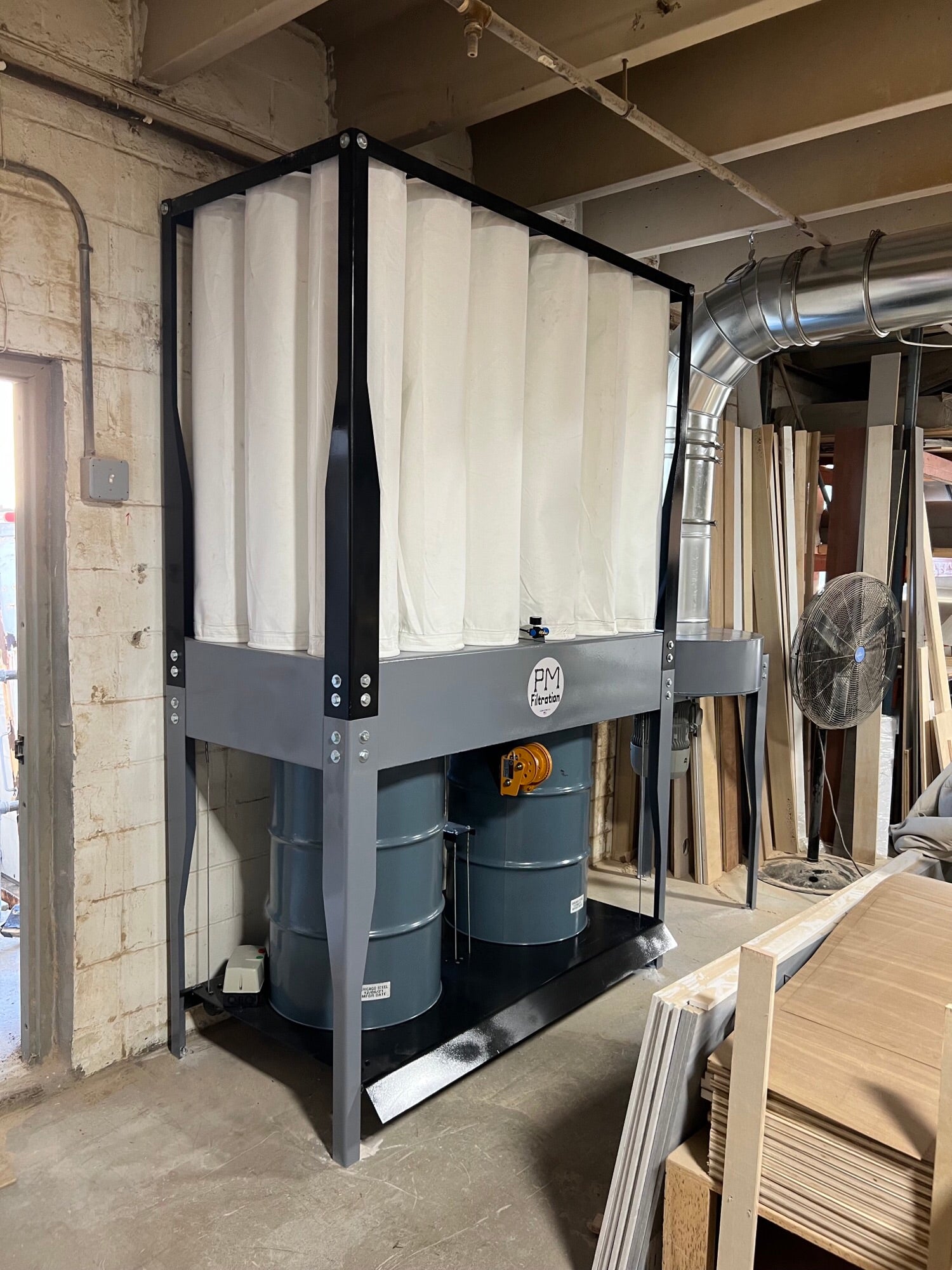

Product Description: 2 Barrel unit with hand winch lifting platform and self sealing drums

Machine Location State: Michigan

Machine Location City:

Year:

Make:

Model:

Serial No:

Phase/Voltage:

Condition:

Any Known Issues:

In Production:

Software Transfer:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
