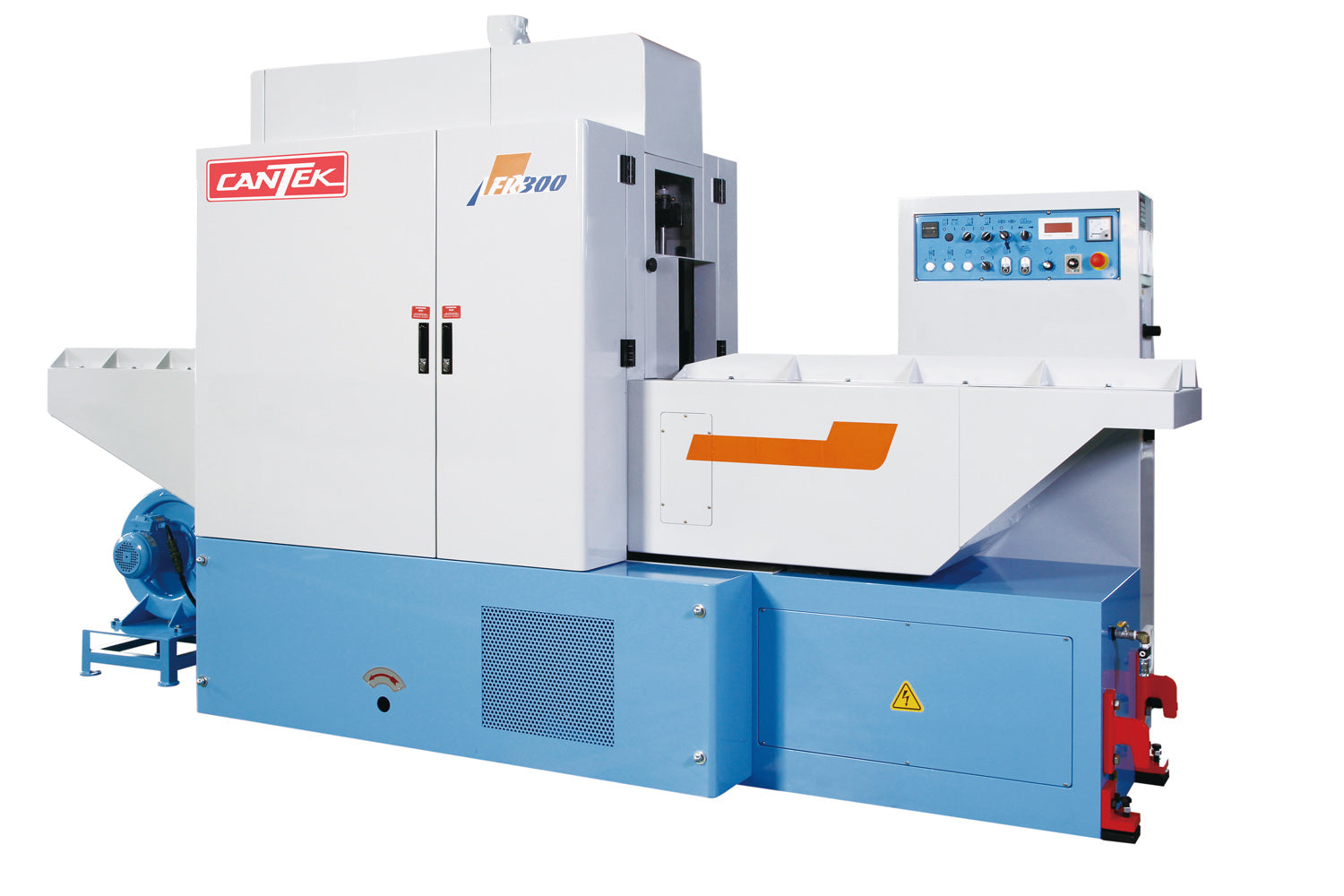

Cantek | FR-300 Frame Saw
Regular price
$0.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
FEED ROLLS & PRESSURE ROLLS
- Bottom Rolls – 7 pieces in Front Section & 5 pieces in Rear Section
- Top Front section is equipped with 7 pressure rollers & 3 air cylinders controlled by sensor
- Top Rear section is equipped with 5 pressure rollers & 1 air cylinder controlled by sensor
| Motor | 40 HP + ½ HP + 5 kW (Servo ) + 2 HP Blower |
| Max. Working Thickness | 310 mm |
| Min. Working Thickness | 80 mm |
| Max. Working Width | 200 mm |
| Min. Working Length | 400 mm |
| Feed Speed | 0.1~2.0 m/min |
| Main Shaft Speed | 450 RPM, stroke distance 260 mm |
| Saw blade Size | 655 x 45 x 0.8 mm, Kerf: 1.2 mm, Pitch: 15 or 17, Stellite or TCT |
| Max Saw blades | 30 Pieces |
| Finished Tolerance Value | ± 0.15 mm |
| Min Precision Thickness | 3 mm |
| Dust Pipe | 5″x 4 Pieces |
| Machine Dimensions | L3200 x W1050 x H2050 mm |
